Anthem MRX 1140 8K 11.2-channel home theater receiver with Dolby Atmos®

About the Anthem MRX 1140 8K

Anthem’s flagship receiver is an A/V masterpiece

Anthem’s top-of-the-line receiver just got an 8K upgrade — all 10 HDMI connections (7 in and 3 out) support 8K at 60Hz and 4K at 120Hz. The MRX 1140 8K doesn’t skimp on audio quality either — it offers exceptional signal processing, amplification, and room correction, along with an advanced digital to audio converter. It also has a fantastic web-based control system, allowing you to set up and control your system from your computer or smart device.

Please note: This advanced home theater receiver requires running Anthem’

Enjoy theater-quality Atmos surround sound at home

The MRX 1140 8K is capable of driving up to 11 speakers at the same time. That means you can power an ultra-immersive 7.2.4-channel Dolby Atmos or DTS:X™ system, with up to four upward-firing or in-ceiling speakers for overhead effects.

Plenty of power for each channel

Five of the receiver’s channels feature a Class AB design and are rated at 140 watts per channel with two channels driven. They’re well-suited for high-performance stand-mount or floor-standing speakers.

The other six channels use Class D amplification and are rated at 60 watts per channel with two channels driven. That’s plenty of power for surround and overhead channels that reproduce less-demanding portions of a movie’s soundtrack.

A high-quality toroidal power supply helps ensure top-notch sound from each channel.

Product highlights:

• Featured in our article: Best AV receivers for 2025

Power and processing:

• 11-channel amplifier
• channels 1-5 rated at 140 watts per channel into 8 ohms (20-20,000 Hz) at 1% THD, with 2 channels driven
  • Class AB amplifier design
• channels 6-11 rated at 60 watts per channel into 8 ohms (20-20,000 Hz) at 1% THD, with 2 channels driven
  • Class D amplifier design
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos® and DTS:X processing for use with in-ceiling or “height” speakers for more enveloping home theater sound
  • DTS® Virtual:X™ creates three-dimensional effects without height speakers
• IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
• ARC Genesis speaker calibration system helps fine-tune your system to best match your room’s acoustics
  • requires installation of free ARC Genesis software on a Mac or PC prior to calibration
• audiophile-grade 32-bit/768kHz DAC (digital to analog converter)
• toroidal power supply ensures low-noise, high-performance picture and sound

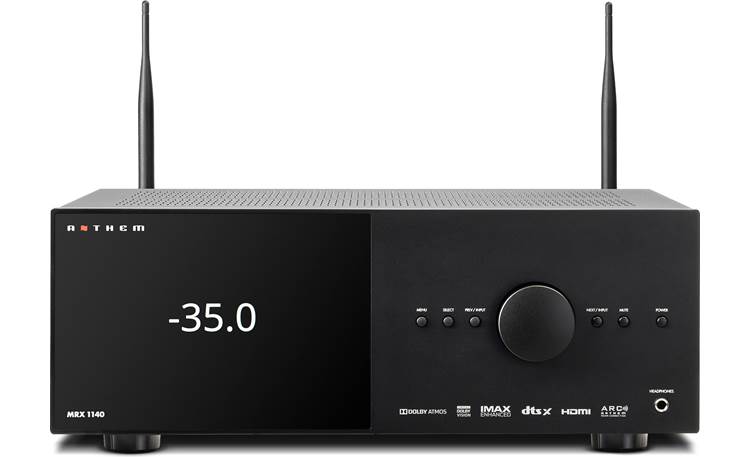

• large front-panel display gives you easy-to-read status updates at a glance

Digital and streaming music options:

• built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
  • free future firmware update will include support for Spotify® and Roon
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
• Google Chromecast for wireless music streaming from compatible devices

Multi-room audio/video:

• dual-room/dual-source output
  • amp assign function lets you use the surround back speaker outputs in different configurations (bi-amp the front speakers or power Zone 2)
  • using powered 2nd-room output allows 9.2-channel sound in main room
• Zone 2 stereo preamp outputs for use with an optional external amplifier
• Zone 2 HDMI output

HDMI features:

• HDMI 2.1 audio/video switching: 7 in, 3 out
  • all HDMI connections support 4K/120Hz and 8K/60Hz
  • HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
  • HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
  • supports HDR10, HDR10+, Dolby Vision®, and HLG (Hybrid Log Gamma)
  • supports Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM)
• supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

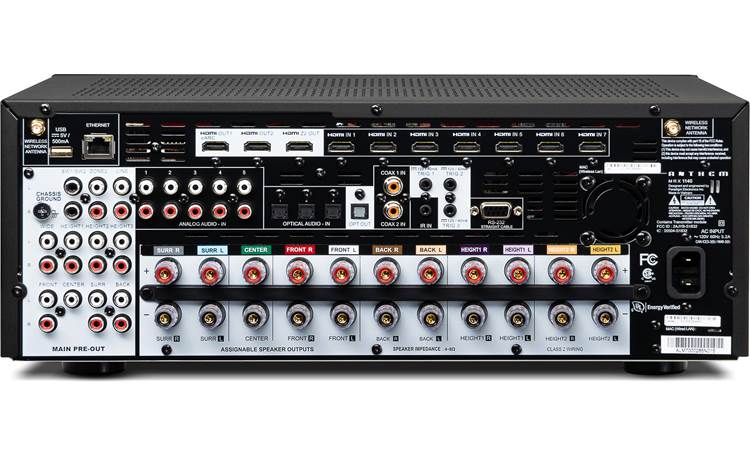

Other connections:

• digital audio inputs: 3 Toslink optical, 2 coaxial
• 5 analog stereo RCA audio inputs
• 15.2-channel RCA preamp outputs
  • includes 2 discrete subwoofer outputs that can be calibrated independently
• outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height1 L/R, Height2 L/R)
• full-sized front-panel headphone jack

Warranty and other info:

• intuitive browser-based control interface
  • easily turn zones on and off, adjust settings, switch up speaker configurations, and more
  • supports smartphones, tablets, and computer browsers
• free Anthem Remote app lets you use your phone as a Wi-Fi remote (currently available as public beta)
• support for IP-based third-party remote control systems
• does not include a built-in AM/FM tuner
• 17″W x 6″H x 14-1/2″D
• weight: 33.6 lbs.
