Bowers & Wilkins Flexible Series CCM362

Product Highlights:

Separate amplifier required.

Product Info:

• ideal for an in-ceiling music system or for overhead surround effects in a home theater system
• 8″ polypropylene woofer
• 1″ soft dome tweeter
• frequency response: 45-30,000 Hz (-6dB)
• recommended amplifier power: up to 80 watts
• sensitivity: 90 dB
• magnetic grilles are paintable to match your décor
• speaker cutout diameter: 9-15/16″
• overall diameter: 11-7/16″
• mounting depth: 3-1/2″
• warranty: 5 years
• 60-day returns
• MFR # FP32298
• Item # 749CCM382

Other info:

• round paintable magnetic grilles included
  • optional square grilles available (sold separately)
• speaker cutout diameter: 8″
• overall diameter: 9-1/2″
• mounting depth: 3-1/4″
• warranty: 5 years
• 60-day returns
• MFR # FP32301
• Item # 749CCM362

Specs:

Features

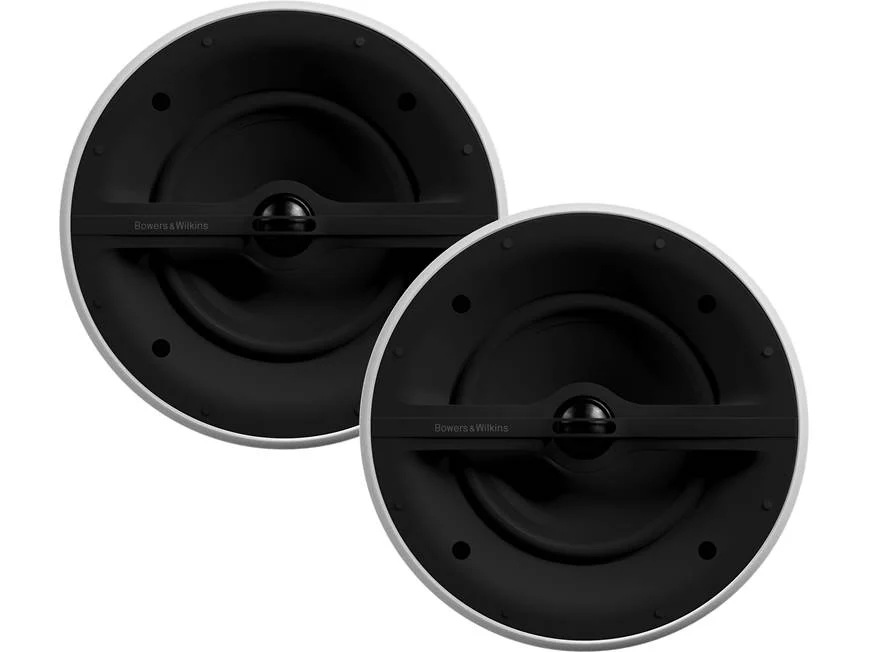

Two-Way Driver Design: The Bowers & Wilkins CCM362 in-ceiling loudspeaker utilizes a two-way driver design featuring a 1″ soft-dome tweeter and 6″ polypropylene woofer with rubber surround for well balanced sound and wide-angle listening.

Spring-Clip Terminals: The B&W CCM362 in-ceiling loudspeaker is outfitted with a set of spring-clip terminals to attach your speaker wire. The spring-clip terminals will accept bare wire (up to 12AWG) and pin-connectors.

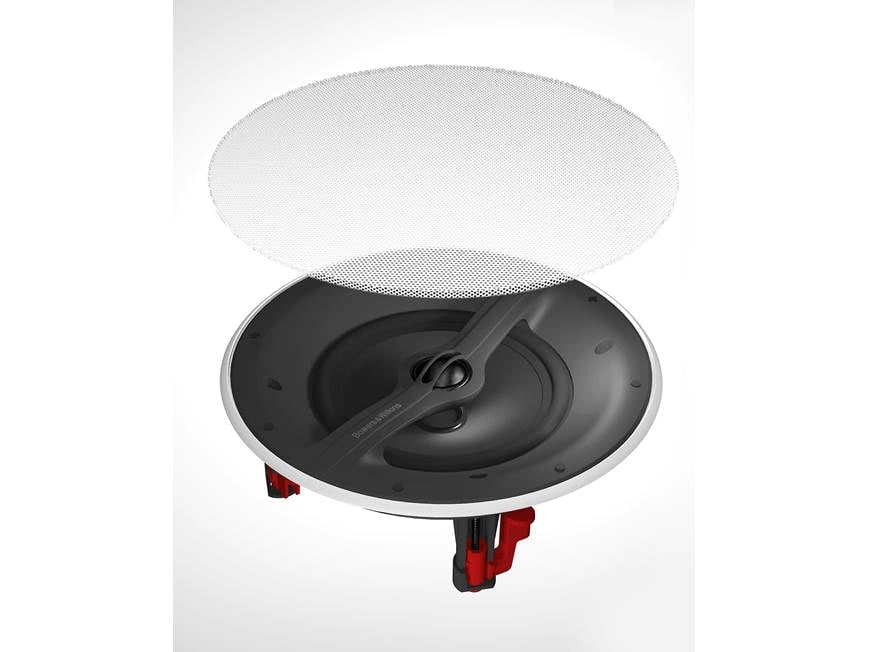

Magnetic & Paintable Grilles: The Bowers & Wilkins CCM362 includes easy-to-install magnetic grilles that are also paintable. The grille protrudes 0.25″ from the ceiling.

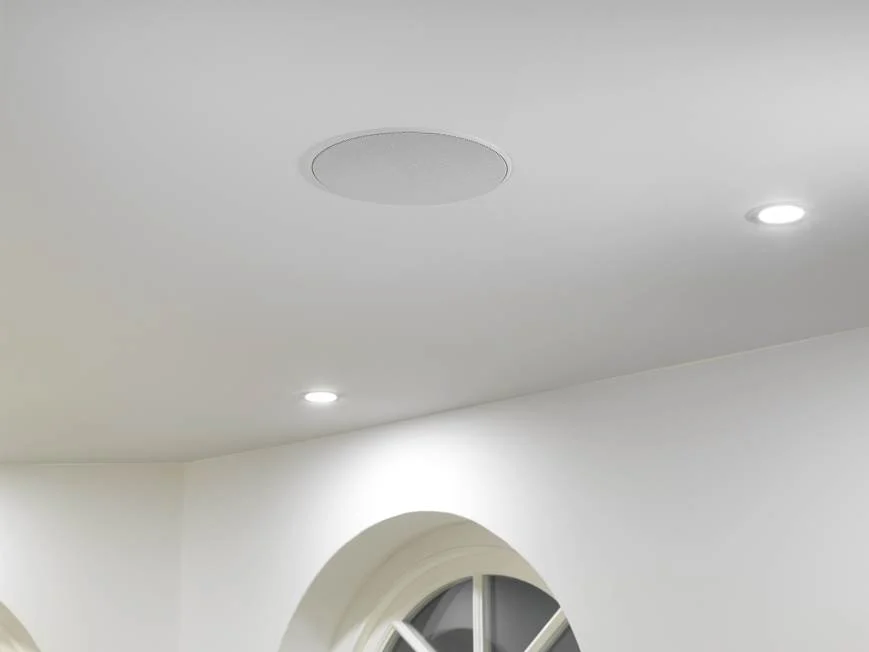

In-Ceiling Installation: The B&W CCM362 requires a round cutout and is secured in the ceiling via integrated “dog-ear” clamps that swing outward and then tighten with phillips-head screws. The cutout will need to measure 8″ (diameter) x 3.25″ (depth). Make sure there is a least 1″ of clearance around the cutout opening to allow the “dog-ear” clamps to swing outward and tighten. The mounting clamps will accommodate 0.25″ to 0.5″ thick drywall.

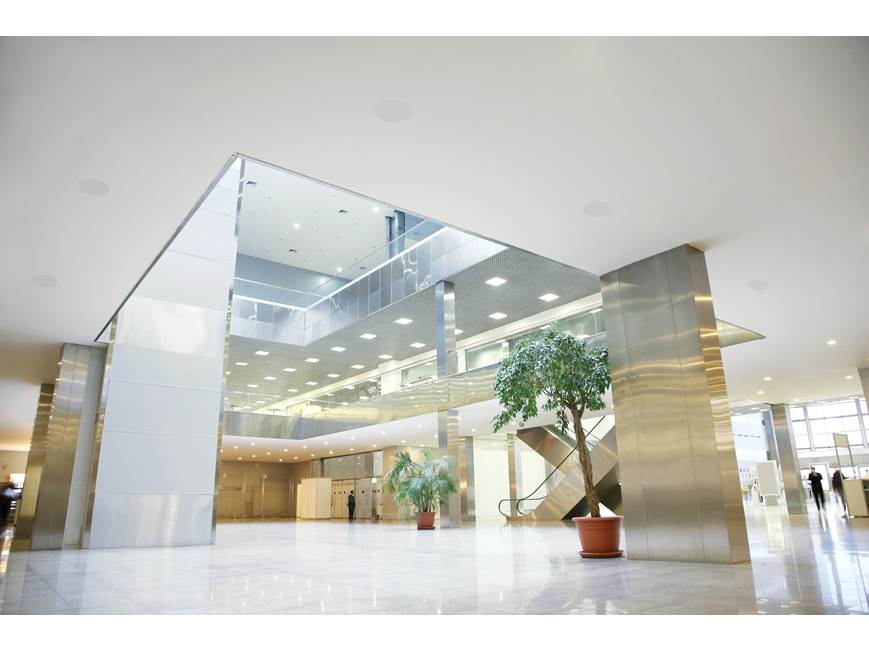

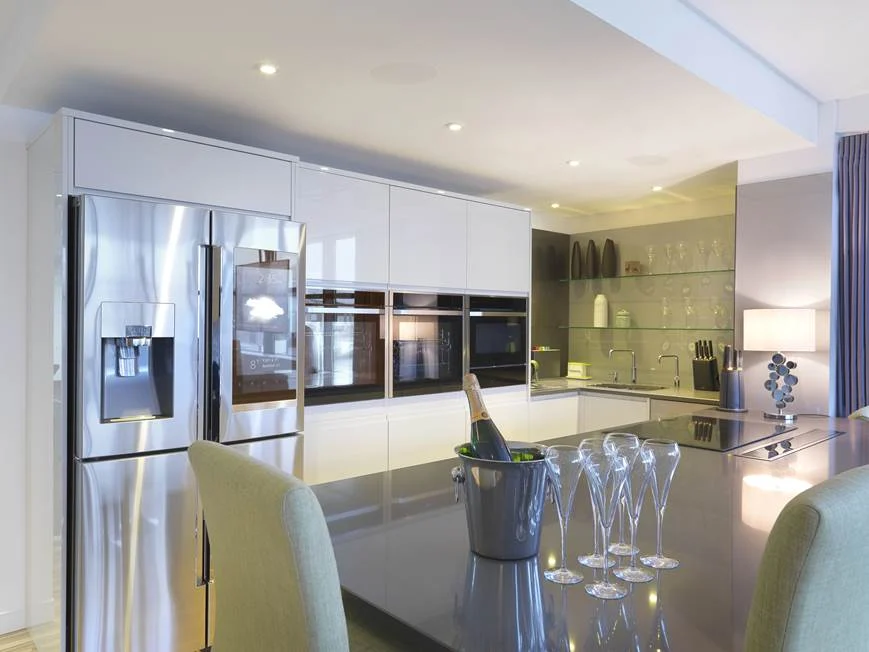

Applications: The Bowers & Wilkins CCM3 Series in-ceiling loudspeakers are suited for distributed audio, 2-channel stereo, and multi-channel home theater applications. They are also particular suitable for use in humid environments, such as bathrooms.

• Distributed Audio: For applications where single CCM3 Series speakers are required to operate independently to provide background audio, they can be mounted as installation convenience and architecture dictate. The only acoustic constraint to bear in mind is that corner locations will result in significantly emphasized low frequencies and should be avoided.
• 2-Channel Stereo: For applications where a pair of CCM3 Series speakers is to be used for conventional stereo reproduction, they should be located between 10′ and 16.5′ apart and a similar distance in front of the listening area.
• Home Theater: For applications where multiple CCM3 Series speakers are to be used for multi-channel home theater system, the left and right front speakers should be located either side of the screen approximately 20″ away. The center channel speaker should be located either directly above or below the screen or, in the case of an acoustically transparent screen, directly behind. Surround channel CCM3 Series speakers should be located just behind and either side of the listening position.

What’s in the box:

• Bowers & Wilkins Flexible Series CCM362 owner’s manual If you need assistance accessing this owner’s manual, please give us a call.
• 2 In-ceiling loudspeakers
• 2 Grilles
• 2 Paint masks
• Quick Start Guide
• Wall Mount Cut-Out Template
• Warranty Information
