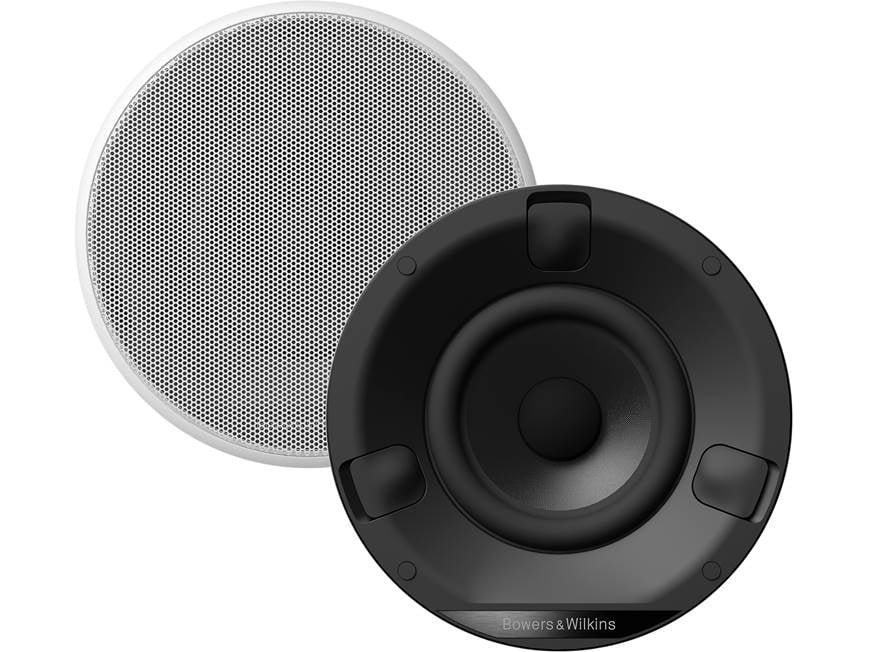

Bowers & Wilkins Performance Series CCM632

Product Highlights:

Separate amplifier required.

Product Info:

• ideal for an in-ceiling music system or for overhead surround effects in a home theater system
• compact design to fit into narrow spaces in your ceiling
• integrated enclosure for improved performance over traditional open-back speakers
• 3″ paper full-range driver
• frequency response: 100-17,000 Hz (-6 dB)
  • for deep, hard-hitting bass consider adding a powered sub to complement these speakers
• recommended amplifier power: 10 to 60 watts
• sensitivity: 84 dB
  • high-current amplification from a quality power amp or integrated amplifier is recommended for best performance
• magnetic round and square grilles are paintable to match your décor
• speaker cutout diameter: 4-5/8″
• round grille diameter: 5-3/4″
• square grille dimensions: 6-1/16″ x 6-1/16″
• mounting depth: 4″
• warranty: 5 years
• 60-day returns
• MFR # FP37613
• Item # 749CCM632

Specs:

Features

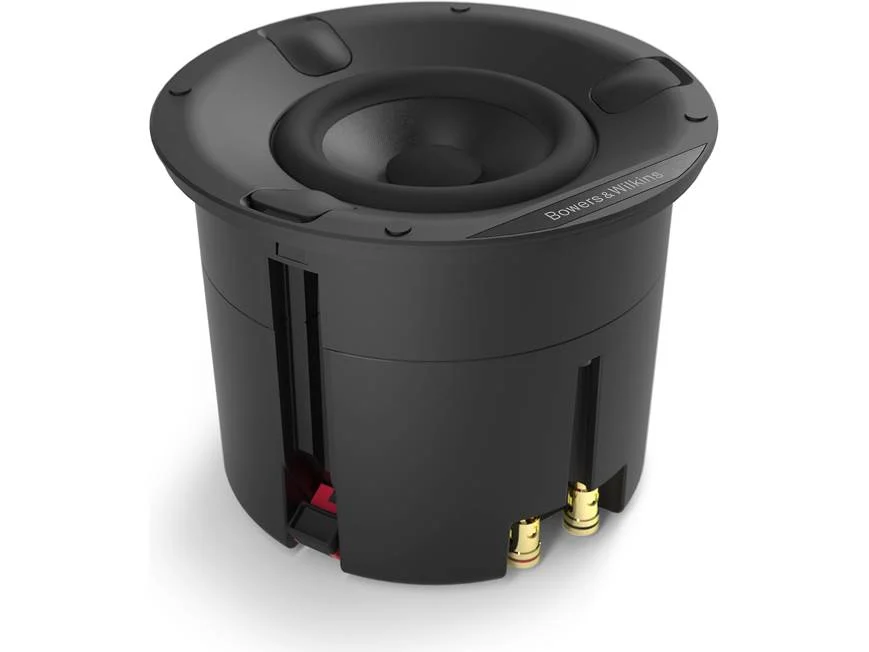

Full-Range Driver: The Bowers & Wilkins CCM632 in-ceiling loudspeaker utilizes a single 3″ full-range driver for well balanced sound.

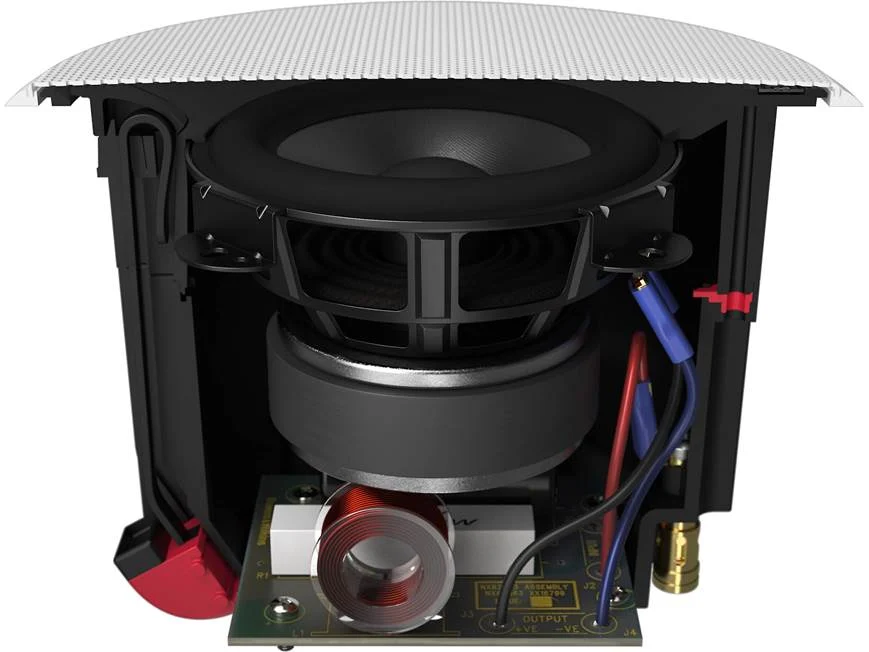

Sealed Enclosure: The B&W CCM632 in-ceiling speaker features its own sealed enclosure to minimize acoustic bleed into adjoining spaces.

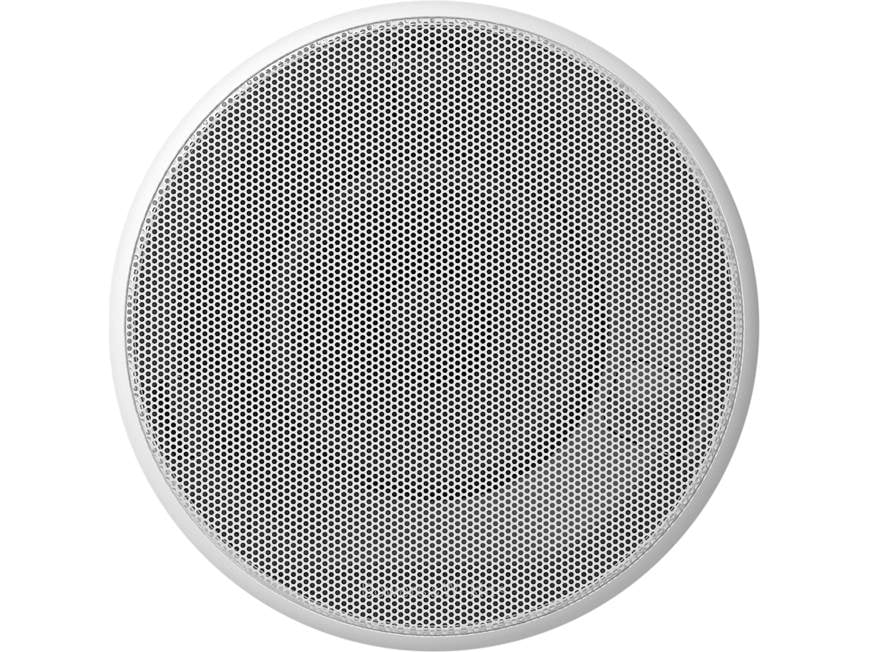

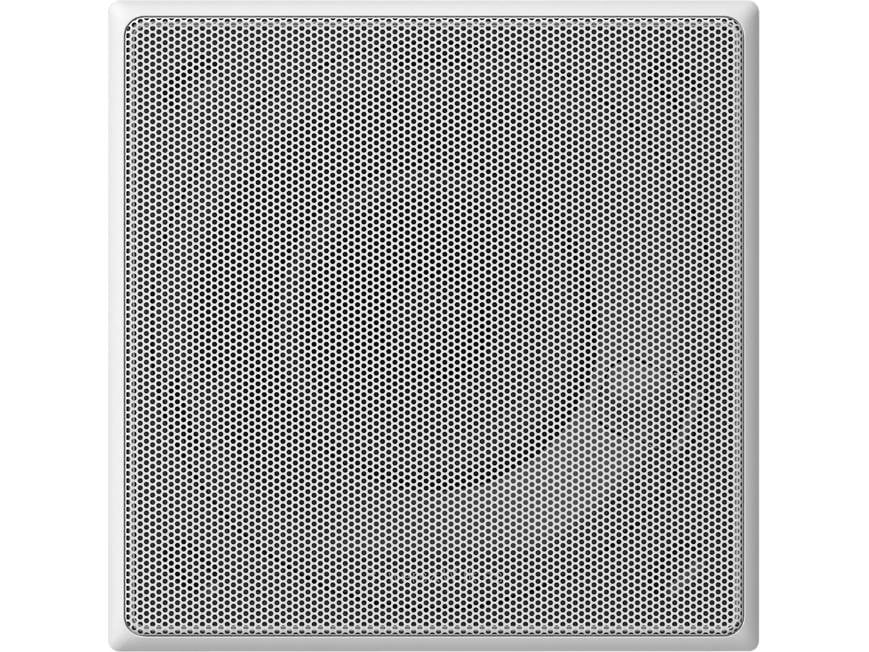

Round & Square Grilles: The Bowers & Wilkins CCM632 includes round and square grilles; choose the one that best fits your application. These easy-to-install magnetic grilles are paintable so you can match your decor. The round grille measures 5.75″ (diameter), while the square grille measures 6.0625″ (w) x 6.0625″ (h). The grilles protrude 0.25″ from the ceiling.

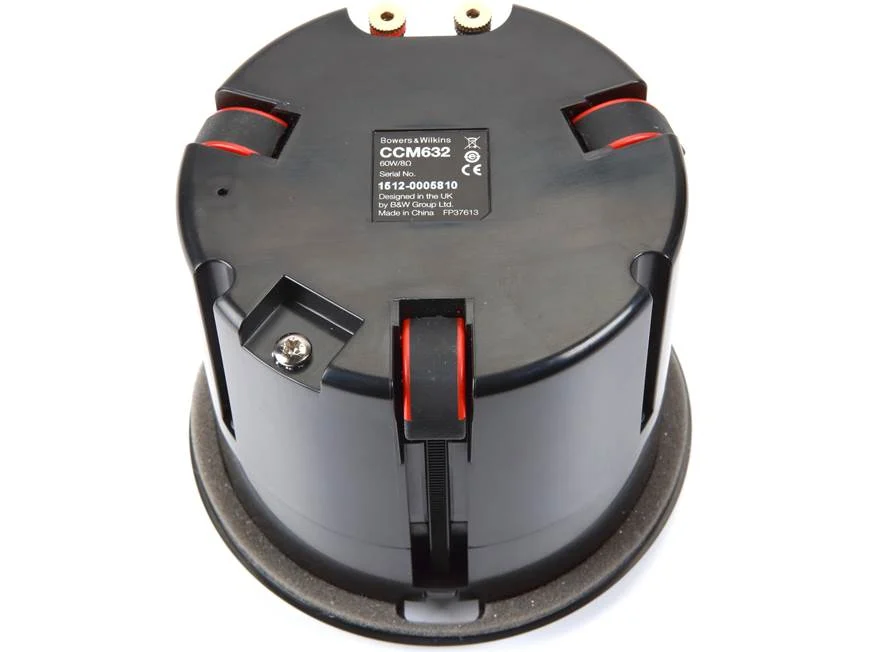

Spring-Post Terminals: The B&W CCM632 in-ceiling loudspeaker is outfitted with spring-post terminals that will accommodate bare speaker wire (up to 12AWG), pin connectors, and banana plugs (single only).

In-Ceiling Installation: The CCM632 in-ceiling speaker features Bowers & Wilkins new and innovative ZipDogs fixing method. These integrated mounting clamps with zip-ties make short work of installation and cope with almost any thickness of mounting panel (up to 2.5″). The CCM632 requires a round cutout in the ceiling that measures 5.75″ in diameter. Make sure there is a least 0.5″ of clearance around the cutout opening to allow the mounting clamps to extend and tighten.

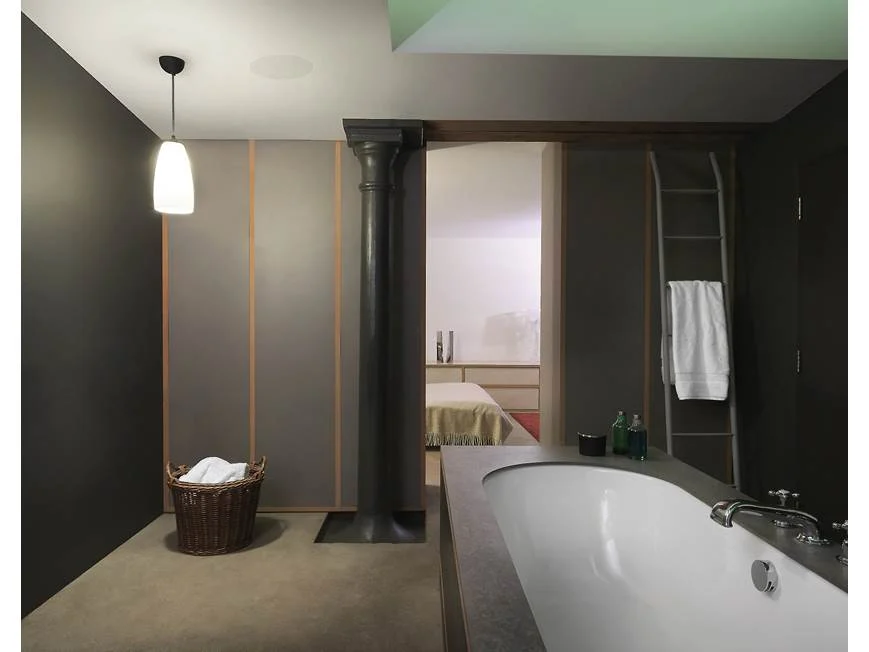

Applications: The Bowers & Wilkins CCM6 Series in-ceiling loudspeakers are suited for distributed audio, 2-channel stereo, and multi-channel home theater applications. They are also particular suitable for use in humid environments, such as bathrooms.

• Distributed Audio: For applications where single CCM6 Series speakers are required to operate independently to provide background audio, they can be mounted as installation convenience and architecture dictate. The only acoustic constraint to bear in mind is that corner locations will result in significantly emphasized low frequencies and should be avoided.
• 2-Channel Stereo: For applications where a pair of CCM6 Series speakers is to be used for conventional stereo reproduction, they should be located between 10′ and 16.5′ apart and a similar distance in front of the listening area.
• Home Theater: For applications where multiple CCM6 Series speakers are to be used for multi-channel home theater system, the left and right front speakers should be located either side of the screen approximately 20″ away. The center channel speaker should be located either directly above or below the screen or, in the case of an acoustically transparent screen, directly behind. Surround channel CCM6 Series speakers should be located just behind and either side of the listening position.

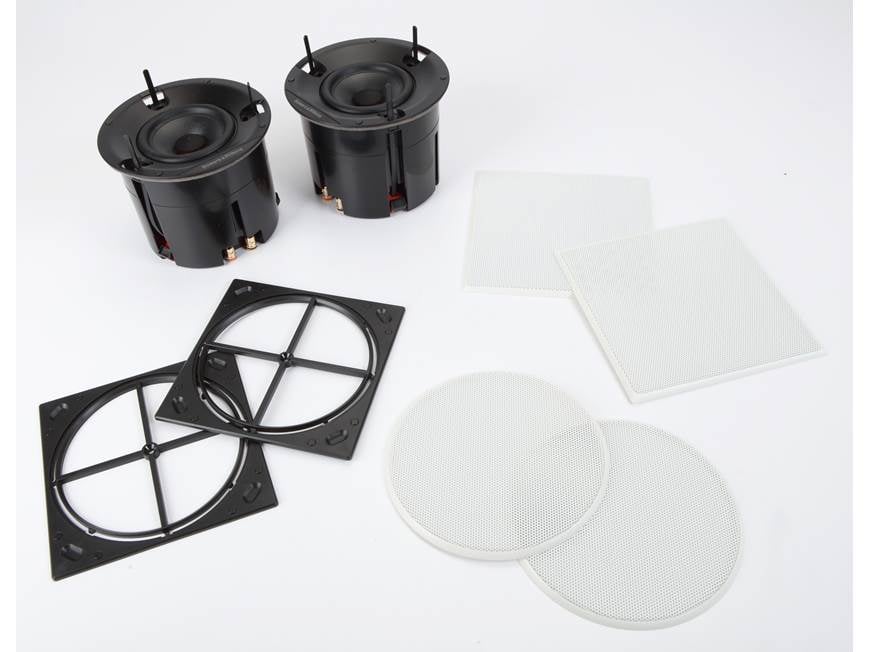

What’s in the box:

• Bowers & Wilkins Performance Series CCM632 owner’s manual If you need assistance accessing this owner’s manual, please give us a call.
• 2 In-ceiling loudspeakers
• 2 Square grilles
• 2 Round grilles
• 4 Rubber caps
• 2 Paint masks
• 2 Cutout Templates
• Quick Start Guide
• Warranty Information
