Bowers & Wilkins Performance Series CCM663RD

Product Highlights:

Separate amplifier required.

Product Info:

• stereo-input speaker plays both the left and right channels of the stereo mix
• 6″ aramid fiber woofer with dual voice coils
• dual 1″ soft dome tweeters
• frequency response: 48-30,000 Hz (-6 dB)
• recommended amplifier power: 25-80 watts
• sensitivity: 89 dB
• impedance: 8 ohms
• ultra-thin bezel and paintable magnetic grille provide seamless integration into your décor
• speaker cutout diameter: 8″
• overall diameter: 9-1/2″
• mounting depth: 5-1/4″
• warranty: 5 years
• 60-day returns
• MFR # FP29602
• Item # 749CCM663S
  • reduced-depth design accommodates mounting locations with limited mounting space

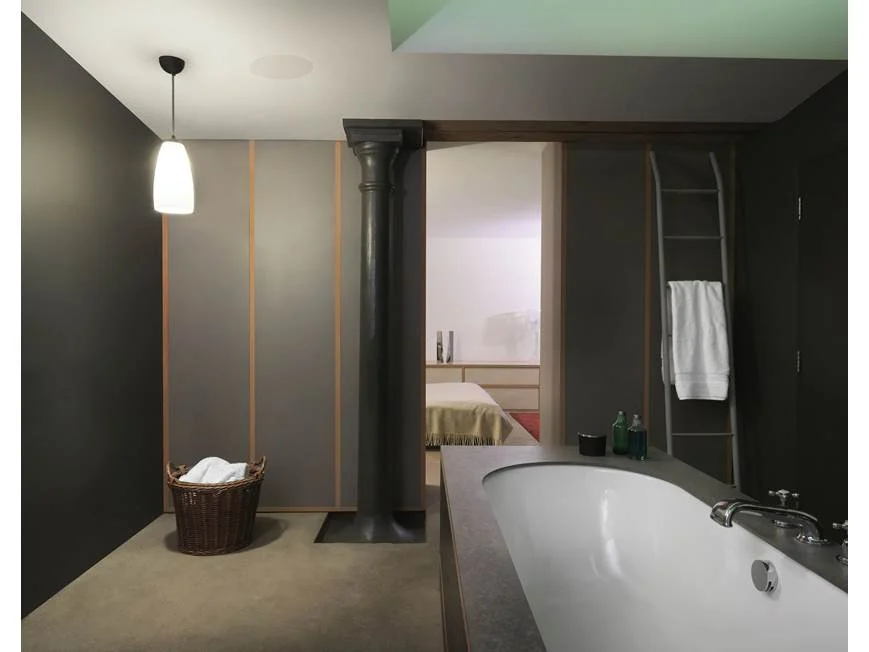

  • ideal for an in-ceiling music system, or as overhead sound effects channels in a Bowers & Wilkins home theater system
  • 6″ blue aramid fiber cone bass/midrange driver
  • 1″ Nautilus aluminum dome tweeter
    • tweeter is aimable to direct high-frequency details towards you
    • three-position EQ switch optimizes off-axis response for different tweeter angles
  • frequency response: 35-50,000 Hz (-6 dB)
  • recommended amplifier power: 25 to 100 watts
  • sensitivity: 86 dB
  • nominal impedance: 8 ohms
  • magnetic grilles are paintable to match your décor

  Warranty & other info:

  • cutout diameter: 8″ (as measured by Crutchfield)
  • overall diameter: 9-1/2″
  • mounting depth: 3-5/8″
  • warranty: 5 years
  • 60-day returns
  • MFR # FP37915
  • Item # 749CM663RD

Specs:

Features

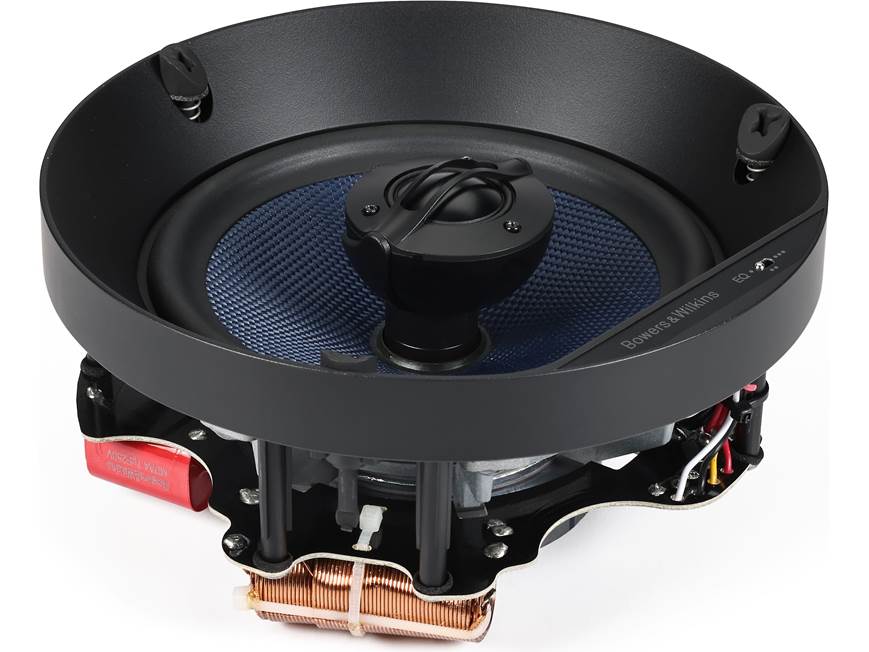

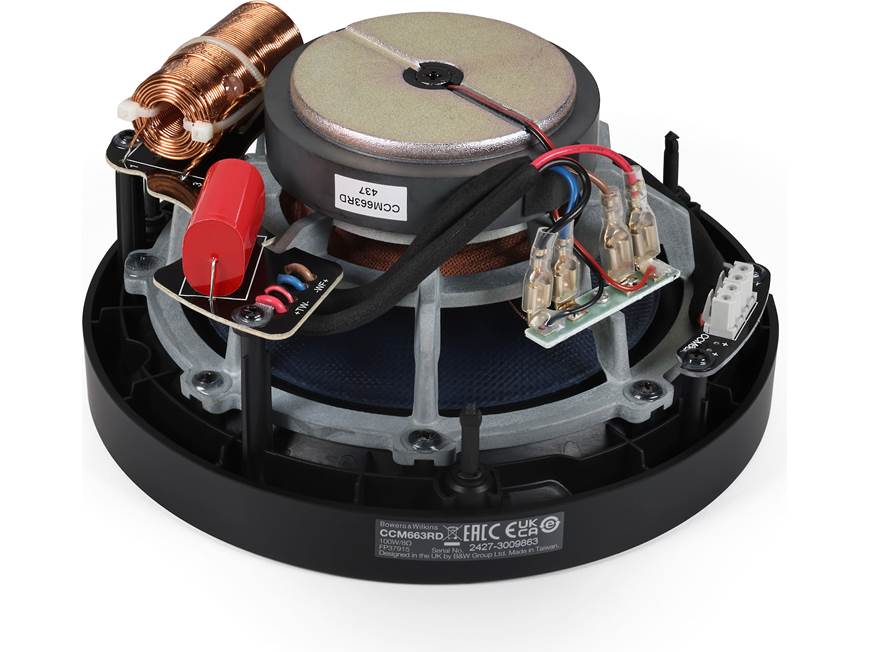

Two-Way Driver Design: The Bowers & Wilkins CCM663RD in-ceiling loudspeaker utilizes a two-way driver design featuring a 1″ aluminum-dome tweeter and a 6″ aramid fiber cone woofer with rubber surround for clear high frequencies, natural midrange, and smooth bass.

Aimable Tweeter with EQ: The tweeter can be tilted towards your listening area and the corresponding equalization options offer better off-axis response. The tweeter can be tilted up to 30 degrees. The 3-way EQ switch can be set to 0, 15, or 30 degrees. “Dots” on the tweeter housing and the EQ switch indicate the angle and EQ setting. Make sure to match up the “Dots” on the tweeter housing with the corresponding “Dots” on the EQ switch.

• 1 Dot = 0 degrees
• 2 Dots = 15 degrees
• 3 Dots = 30 degrees

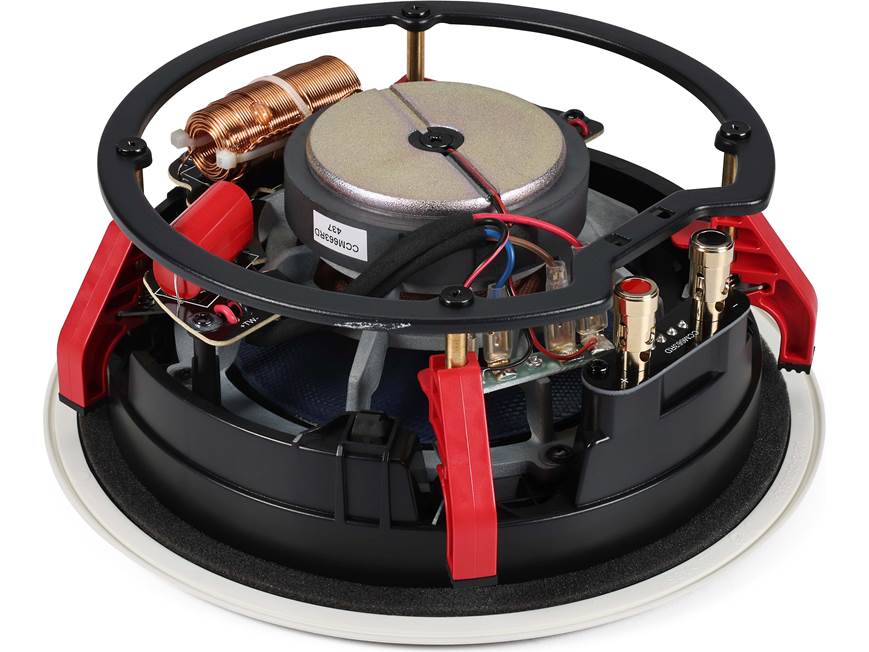

Spring-Post Terminals: The B&W CCM663RD in-ceiling loudspeaker is outfitted with spring-post terminals that will accommodate bare speaker wire (up to 12AWG), pin connectors, and banana plugs (single only).

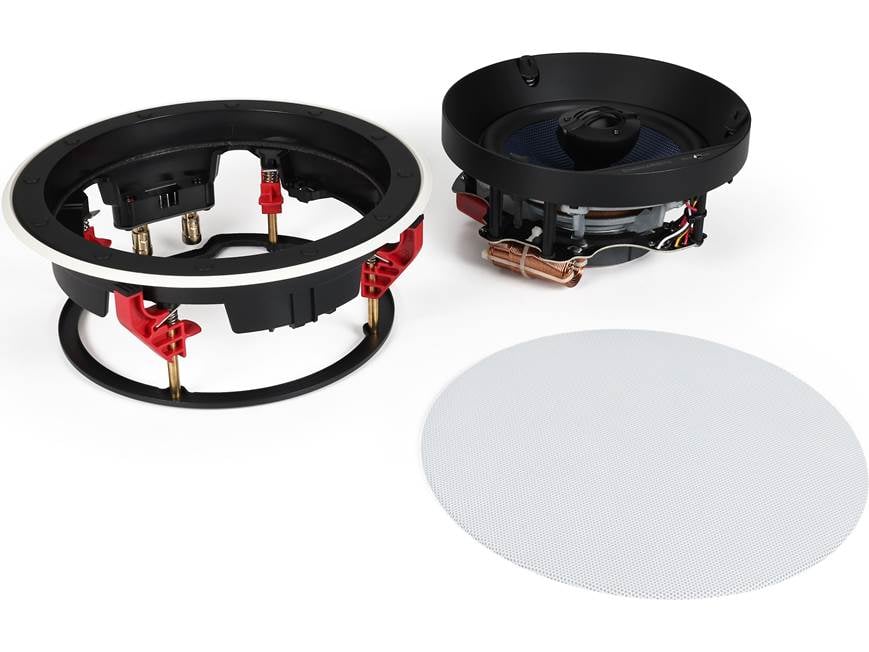

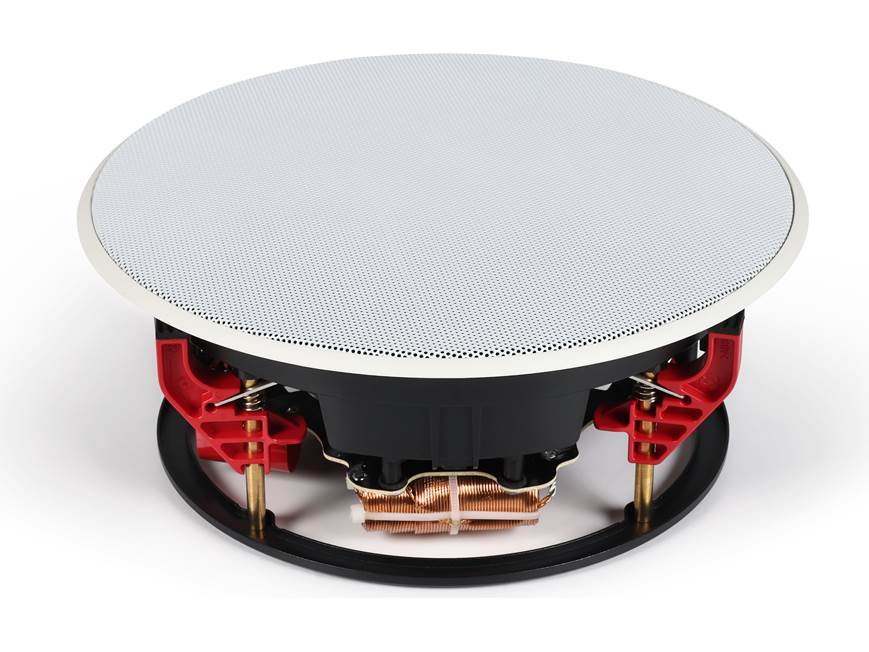

Magnetic & Paintable Grilles: The Bowers & Wilkins CCM663RD in-ceiling loudspeaker includes easy-to-install magnetic grilles that are also paintable. The grille protrudes 0.25″ from the ceiling.

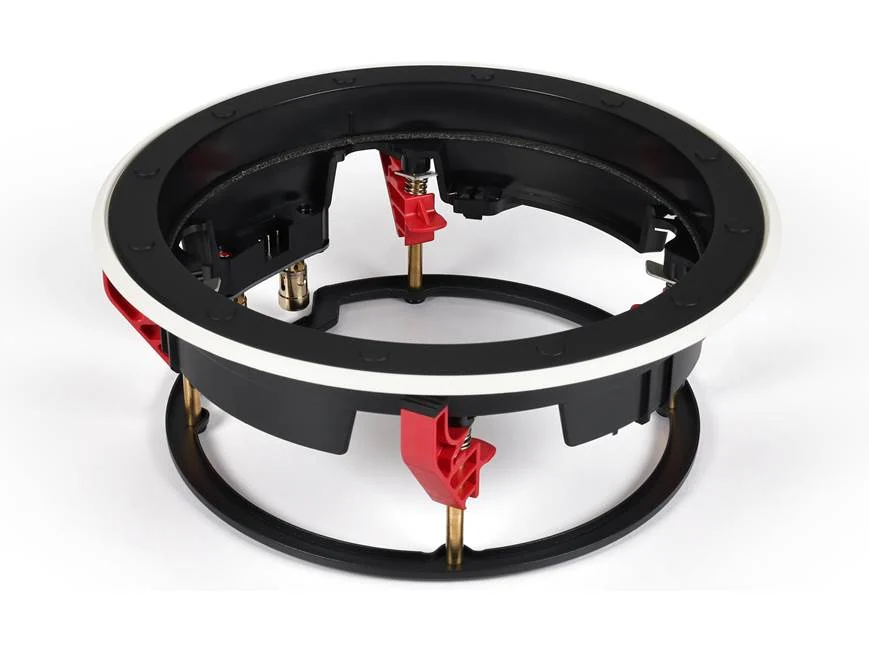

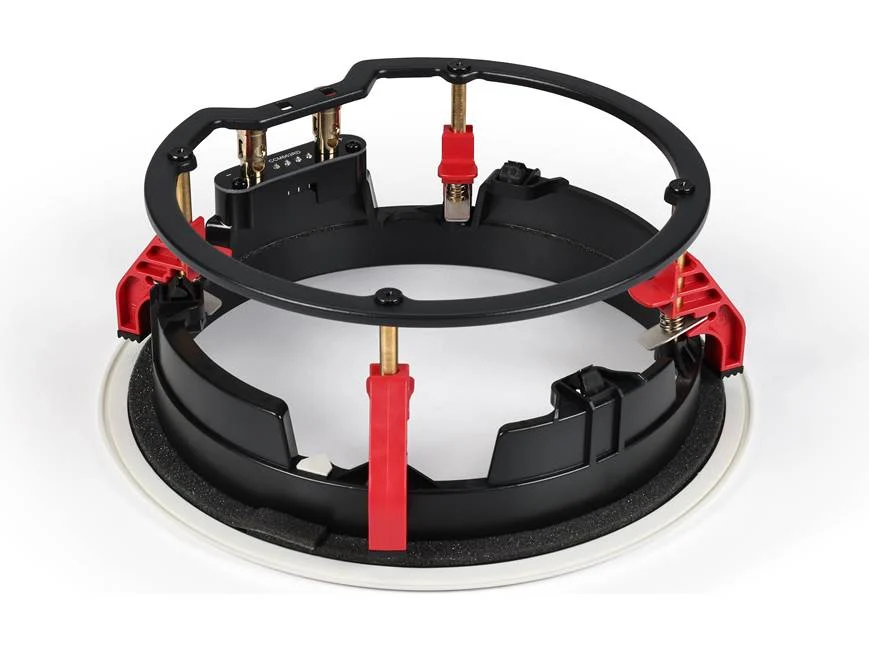

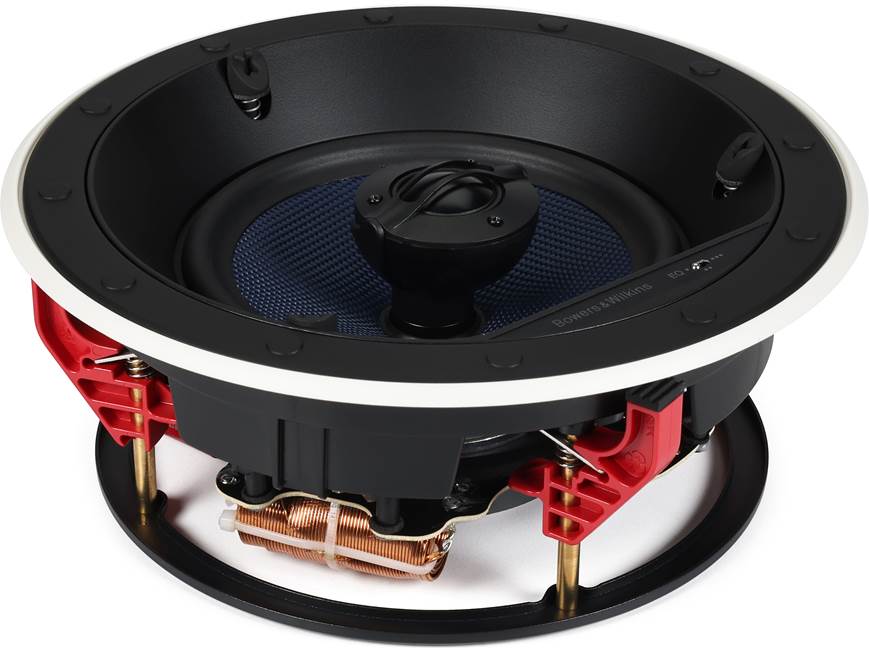

In-Ceiling Installation: The B&W CCM663RD requires a round cutout and is secured in the ceiling via the included mounting frame with integrated “QuickDogs” spring-loaded clamps that tighten using Phillips-head screws. The cutout will need to measure 8″ (diameter) x 3.625″ (depth). Make sure there is a least 0.75″ of clearance around the cutout opening for the integrated “QuickDogs” clamps. The mounting clamps will accommodate 0.25″ to 1″ thick drywall.

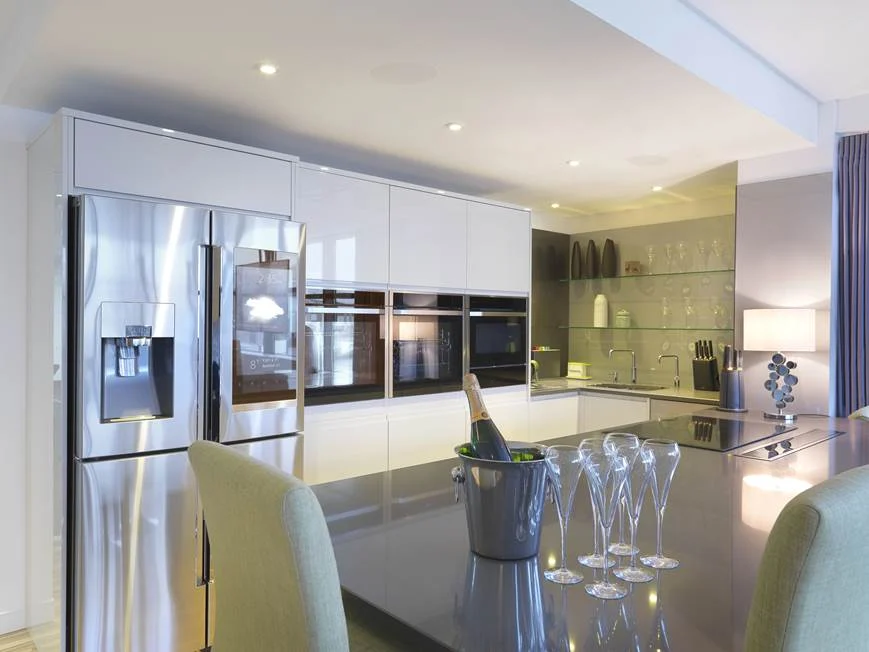

Applications: The Bowers & Wilkins CCM6 Series in-ceiling loudspeakers are suited for distributed audio, 2-channel stereo, and multi-channel home theater applications.

• Distributed Audio: For applications where single CCM6 Series speakers are required to operate independently to provide background audio, they can be mounted as installation convenience and architecture dictate. The only acoustic constraint to bear in mind is that corner locations will result in significantly emphasized low frequencies and should be avoided.
• 2-Channel Stereo: For applications where a pair of CCM6 Series speakers is to be used for conventional stereo reproduction, they should be located between 10′ and 16.5′ apart and a similar distance in front of the listening area.
• Home Theater: For applications where multiple CCM6 Series speakers are to be used for multi-channel home theater system, the left and right front speakers should be located either side of the screen approximately 20″ away. The center channel speaker should be located either directly above or below the screen or, in the case of an acoustically transparent screen, directly behind. Surround channel CCM6 Series speakers should be located just behind and either side of the listening position.

What’s in the box:

• Bowers & Wilkins Performance Series CCM663RD owner’s manual If you need assistance accessing this owner’s manual, please give us a call.

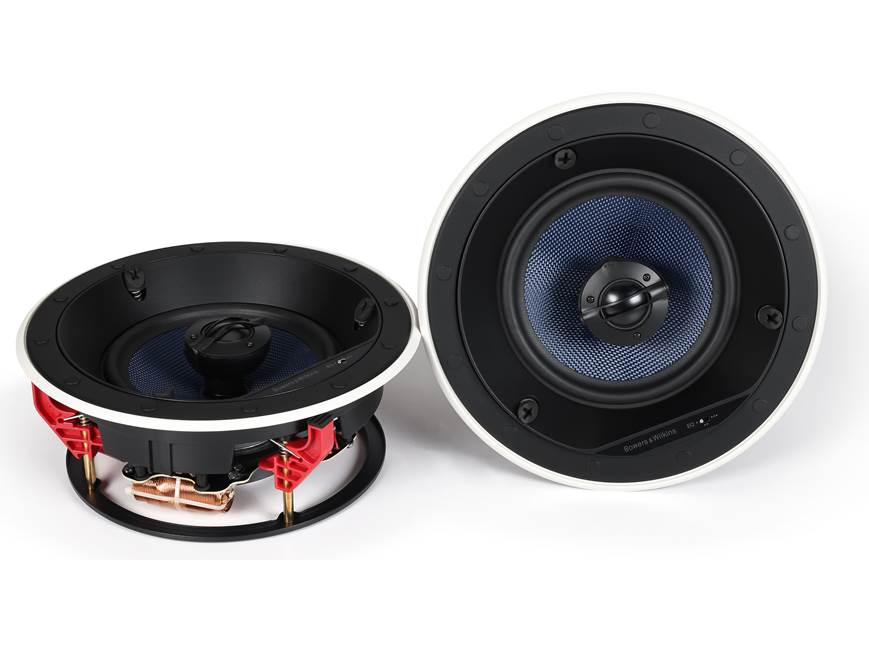

• 2 In-ceiling loudspeakers
• 2 Mounting frames
• 2 Grilles
• 2 Paint masks
• 2 Cutout templates
• Quick Start Guide
• Warranty Information
