Bowers & Wilkins Performance Series CCM664SR

Product Highlights:

Separate amplifier required.

Product Info:

• stereo-input speaker plays both the left and right channels of the stereo mix
• 6″ glass-fiber woofer with dual voice coils
• dual 1″ soft dome tweeters
• frequency response: 48-30,000 Hz (-6 dB)
• recommended amplifier power: 25-80 watts
• sensitivity: 88 dB
• impedance: 8 ohms

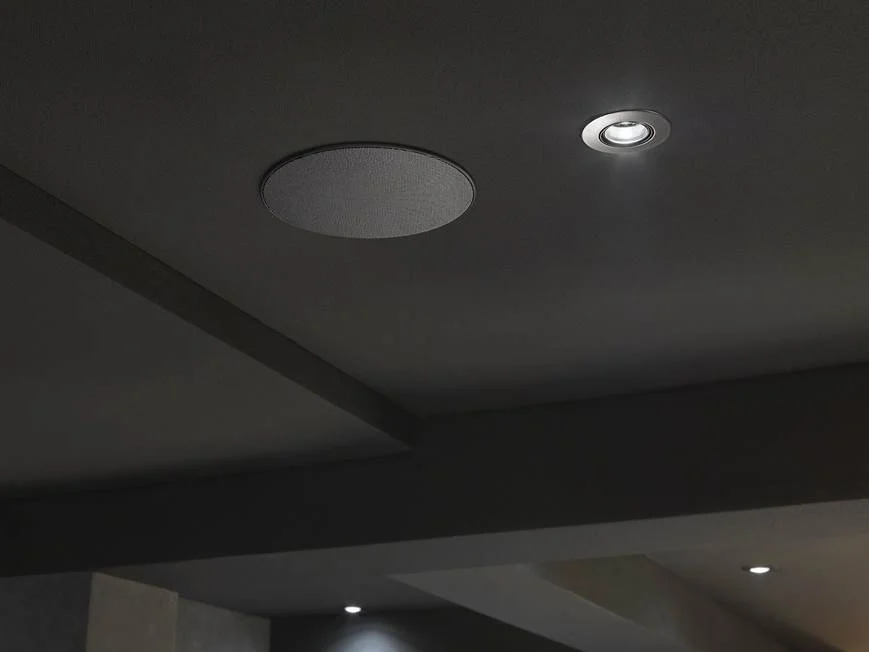

• ultra-thin bezel and paintable magnetic grille provide seamless integration into your décor
• speaker cutout diameter: 8″
• overall diameter: 9-1/2″
• mounting depth: 5-1/4″
• warranty: 5 years
• 60-day returns
• MFR # FP29610
• Item # 749CCM664S

Specs:

Features

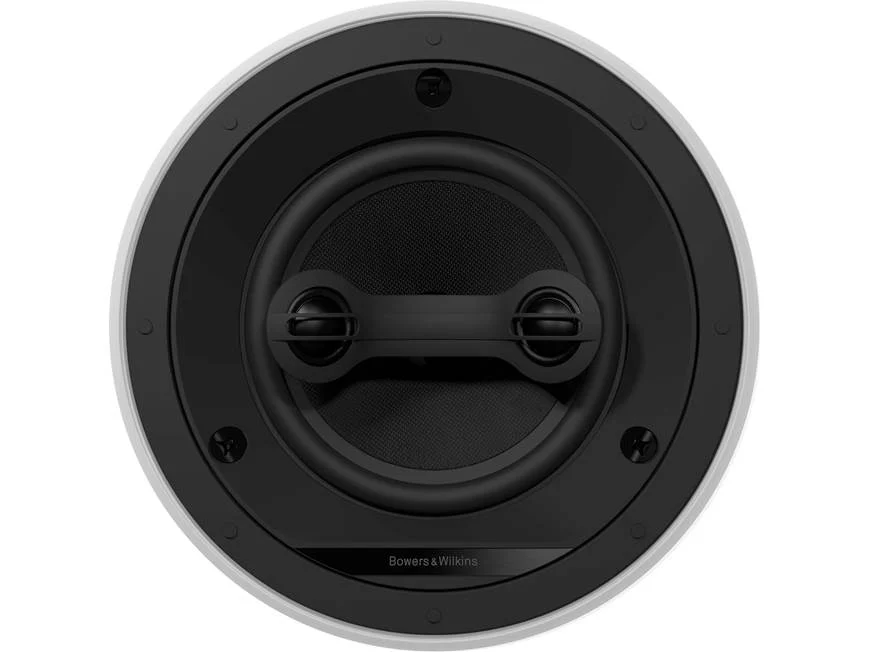

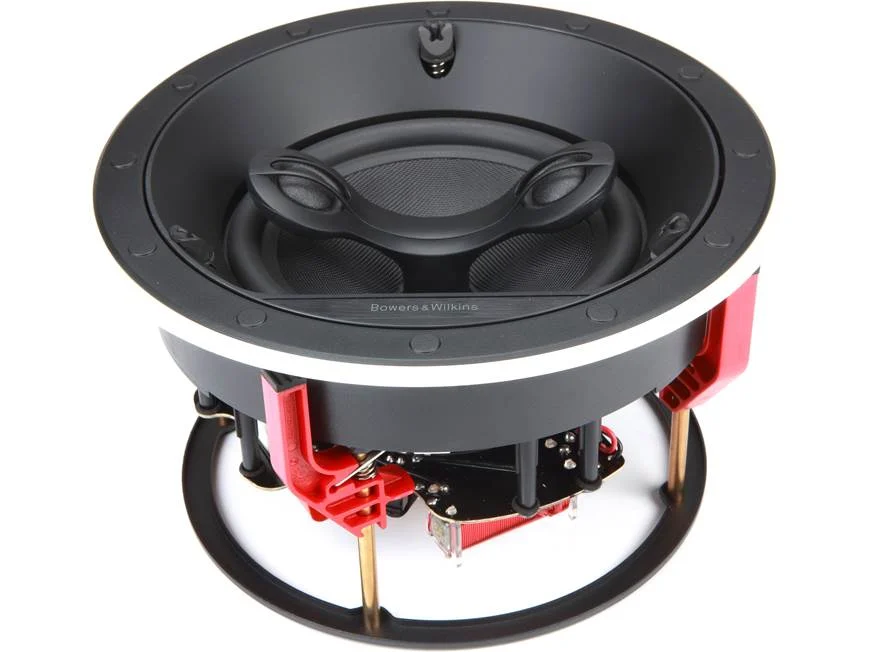

Stereo Two-Way Driver Design: The Bowers & Wilkins CCM664SR utilizes a stereo two-way driver design featuring two 1″ soft-dome tweeters and one twin voice-coil 6″ glass-fiber cone woofer with rubber surround for stereo reproduction from one in-ceiling loudspeaker.

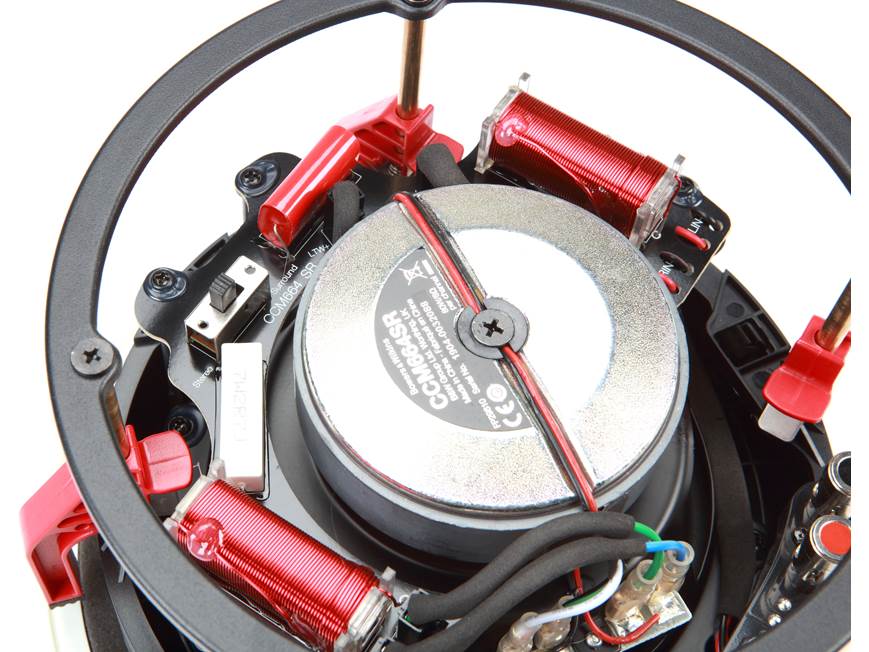

• Stereo & Surround Modes: There is a two-position switch on the back of the CCM664SR that will configure the speaker for Stereo (distributed audio) or Surround (home theater) applications.

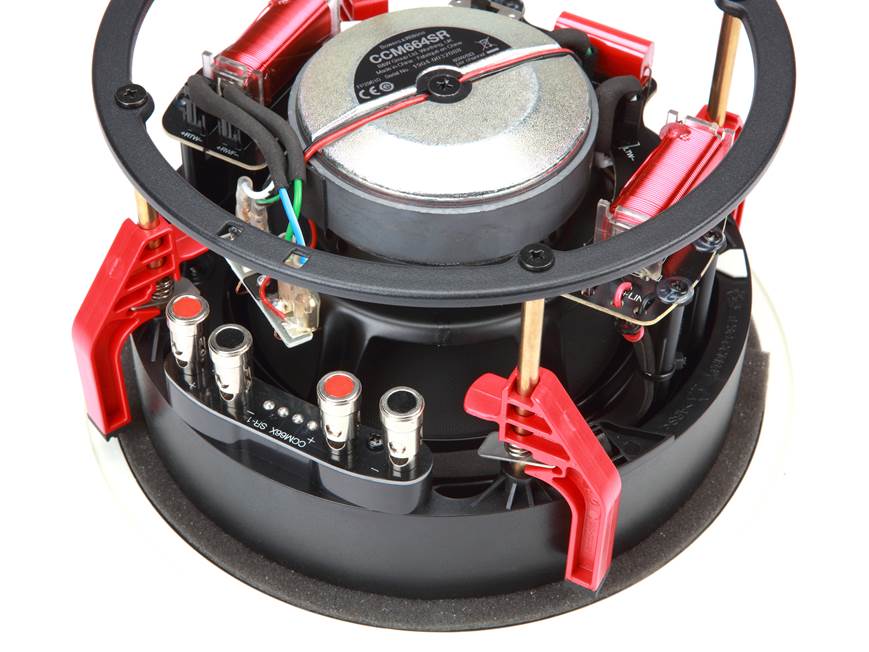

• Dual Spring-Post Terminals: The B&W CCM664SR in-ceiling loudspeaker is outfitted two sets of spring-post terminals that will accommodate bare speaker wire (up to 12AWG), pin connectors, and banana plugs (single only).

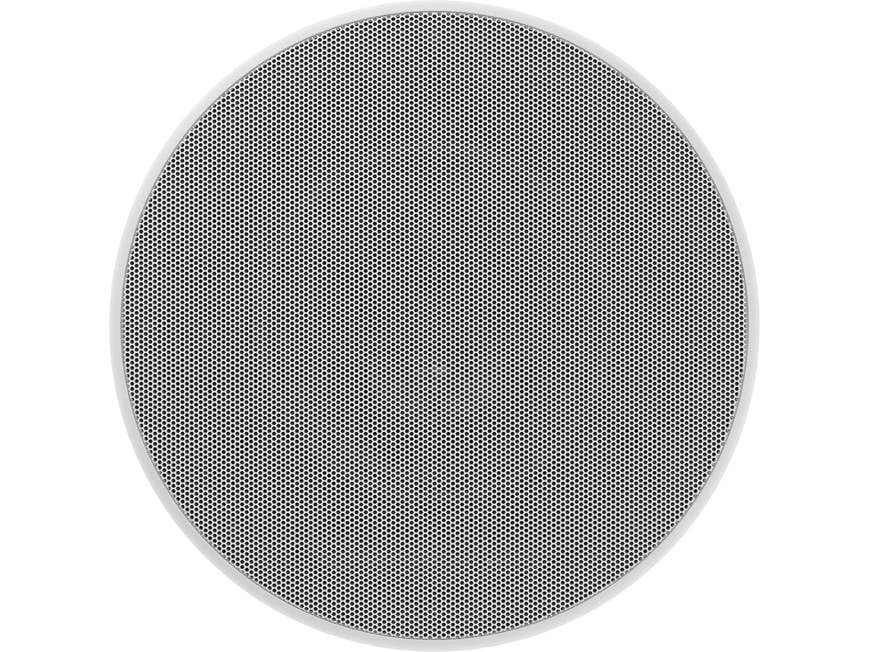

Magnetic & Paintable Grille: The Bowers & Wilkins CCM664SR in-ceiling loudspeaker includes and easy-to-install magnetic grille that is also paintable. The grille protrudes 0.25″ from the ceiling.

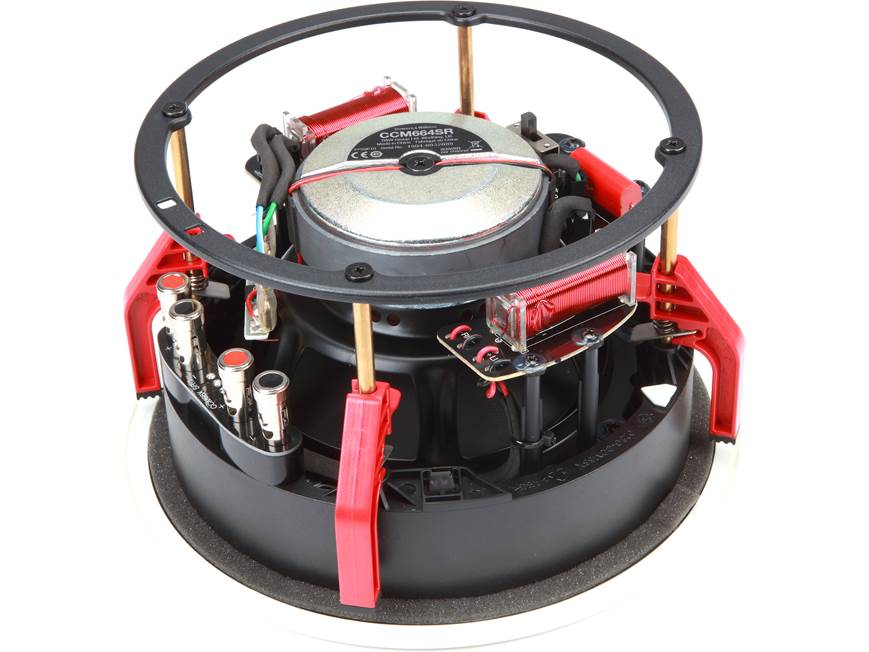

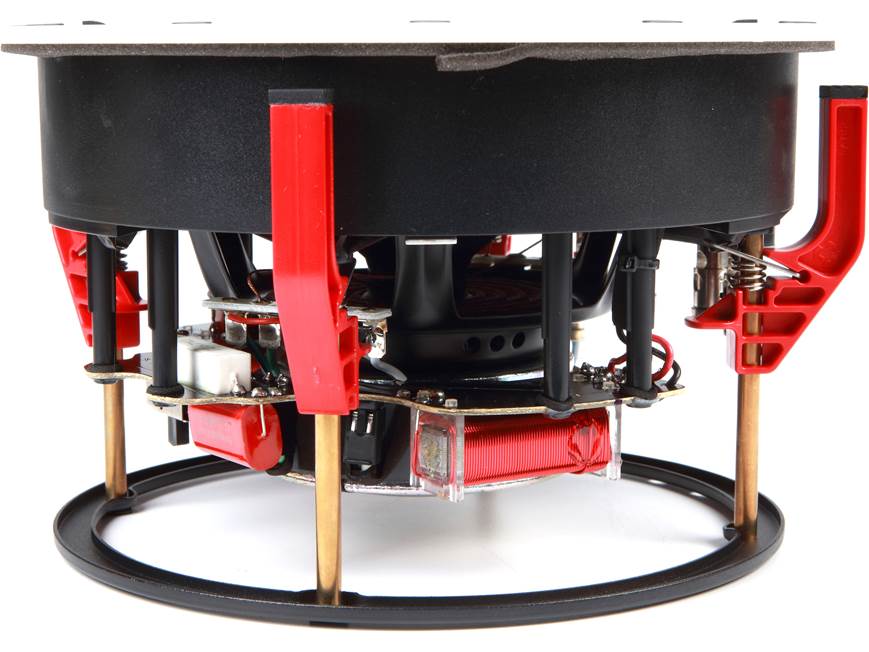

In-Ceiling Installation: The B&W CCM664SR requires a round cutout and is secured in the ceiling via the included mounting frame with integrated “QuickDogs” spring-loaded clamps that tighten using phillips-head screws. The cutout will need to measure 8″ (diameter) x 5.25″ (depth). Make sure there is a least 0.75″ of clearance around the cutout opening for the integrated “QuickDogs” clamps. The mounting clamps will accommodate 0.25″ to 1″ thick drywall.

Applications: The Bowers & Wilkins CCM6 Series in-ceiling loudspeakers are suited for distributed audio and multi-channel home theater applications.

• Distributed Audio: For applications where single CCM6 Series speakers are required to operate independently to provide background audio, they can be mounted as installation convenience and architecture dictate. The only acoustic constraint to bear in mind is that corner locations will result in significantly emphasized low frequencies and should be avoided.
• Home Theater: For applications where multiple CCM6 Series speakers are to be used for multi-channel home theater system, the left and right front speakers should be located either side of the screen approximately 20″ away. The center channel speaker should be located either directly above or below the screen or, in the case of an acoustically transparent screen, directly behind. Surround channel CCM6 Series speakers should be located just behind and either side of the listening position.

What’s in the box:

• Bowers & Wilkins Performance Series CCM664SR owner’s manual If you need assistance accessing this owner’s manual, please give us a call.
• In-ceiling loudspeaker
• Mounting frame
• Grille
• Paint mask
• Cutout template
• Quick Start Guide
• Warranty Information
