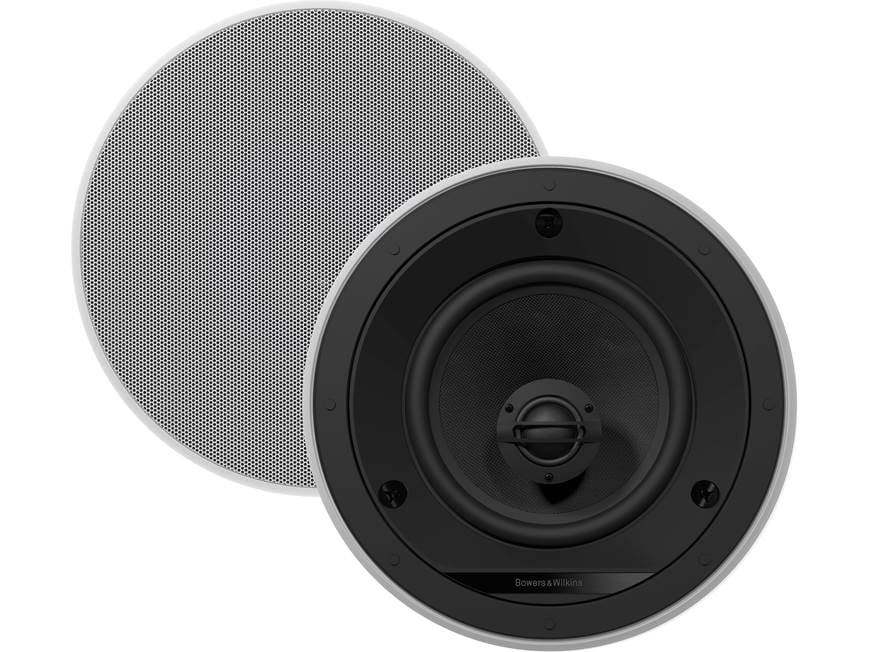

Bowers & Wilkins Performance Series CCM665

Product Highlights:

Separate amplifier required.

Product Info:

• ideal for an in-ceiling music system, or as overhead sound effects channels in a Bowers & Wilkins home theater system
• 6″ glass-fiber woofer
• 1″ soft dome tweeter
• frequency response: 45-35,000 Hz (-6 dB)
• recommended amplifier power: 25 to 130 watts
• sensitivity: 87 dB
• magnetic grille is paintable to match your décor
• speaker cutout diameter: 8″
• overall diameter: 9-1/2″
• mounting depth: 5-1/4″
• warranty: 5 years
• 60-day returns
• MFR # FP29599
• Item # 749CCM665

Specs:

Features

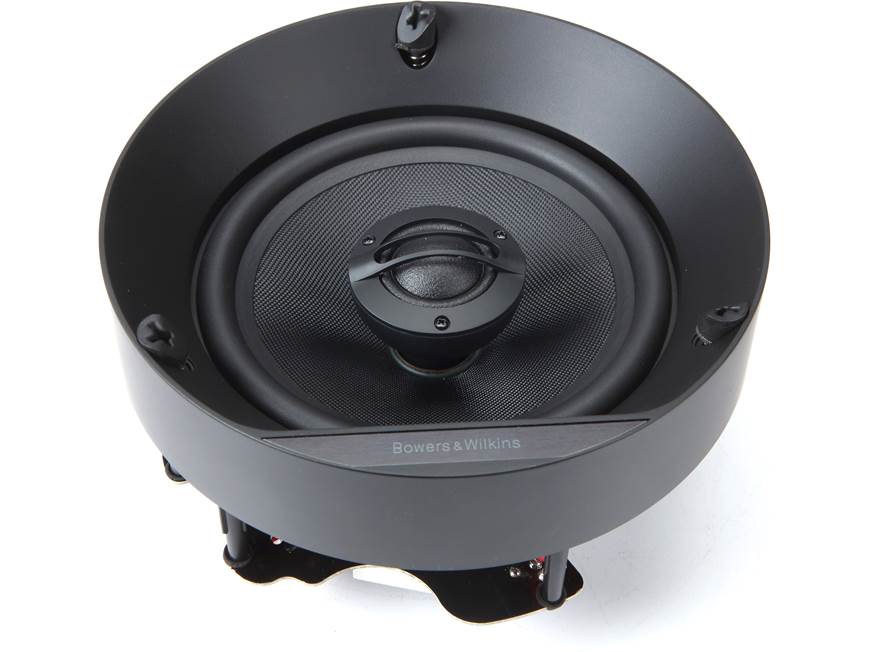

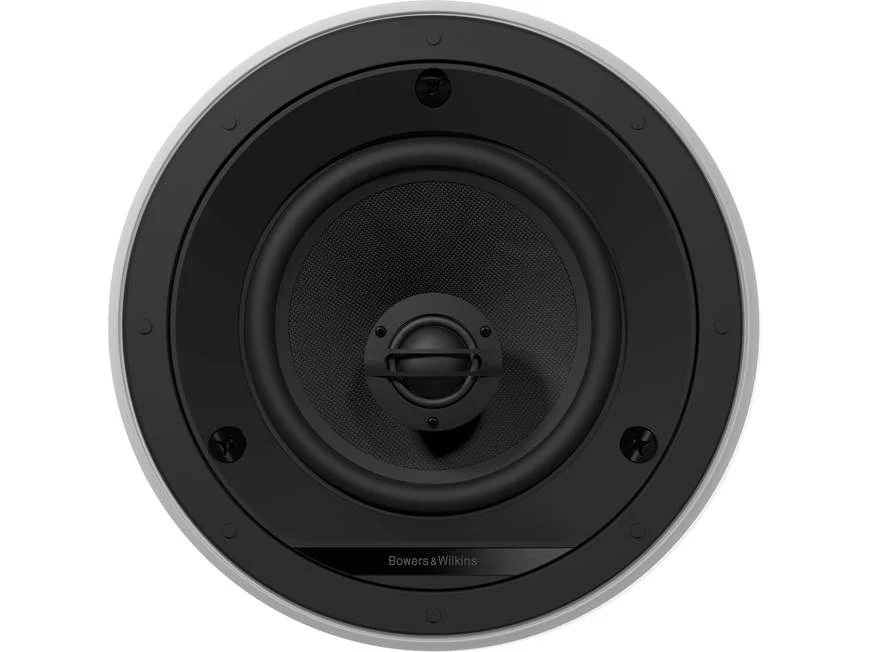

Two-Way Driver Design: The Bowers & Wilkins CCM665 in-ceiling loudspeaker utilizes a two-way driver design featuring a 1″ soft-dome tweeter and a 6″ glass-fiber cone woofer with rubber surround for detailed high and midrange frequencies, as well as smooth midbass and bass frequencies.

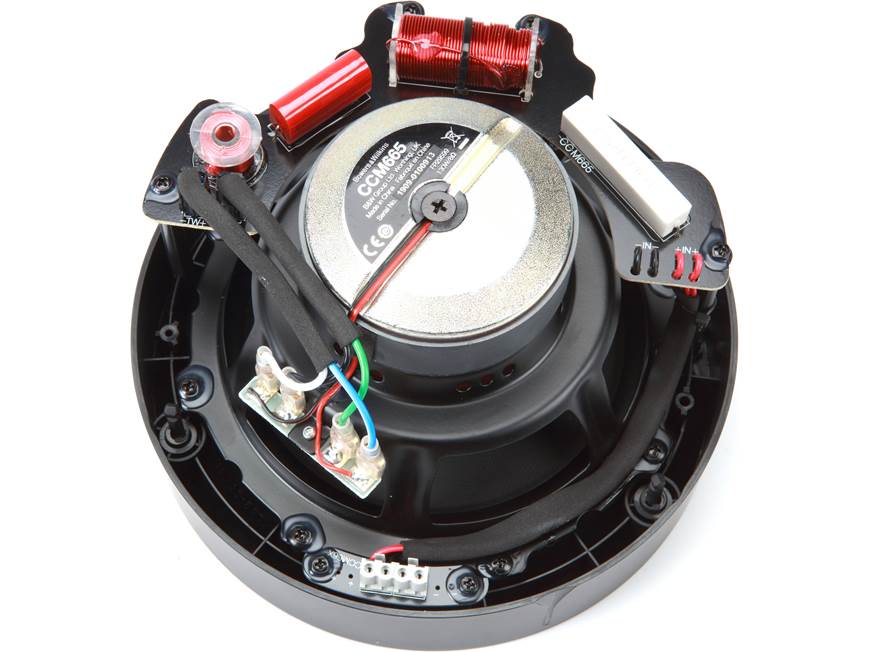

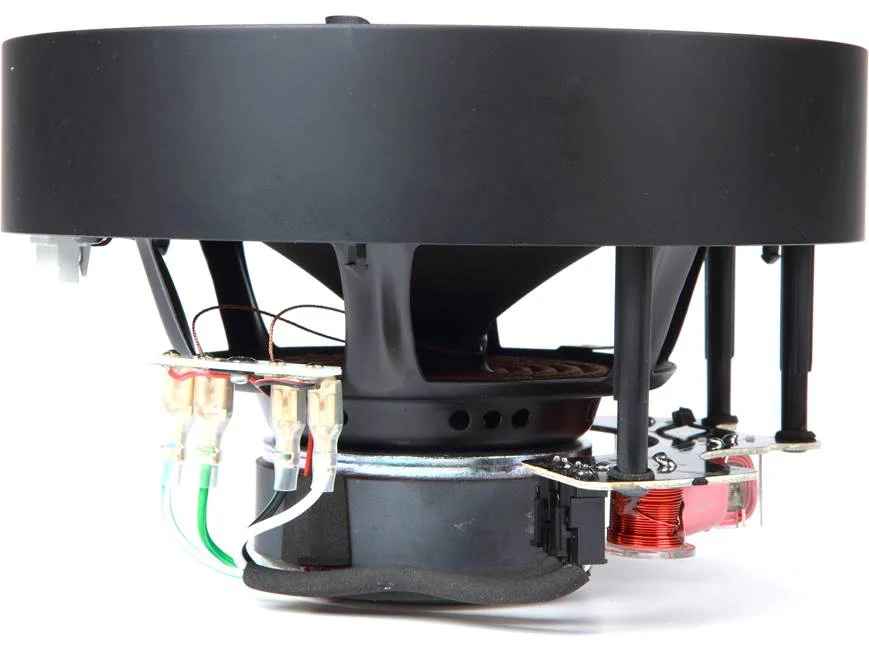

Spring-Post Terminals: The B&W CCM665 in-ceiling loudspeaker is outfitted with spring-post terminals that will accommodate bare speaker wire (up to 12AWG), pin connectors, and banana plugs (single only).

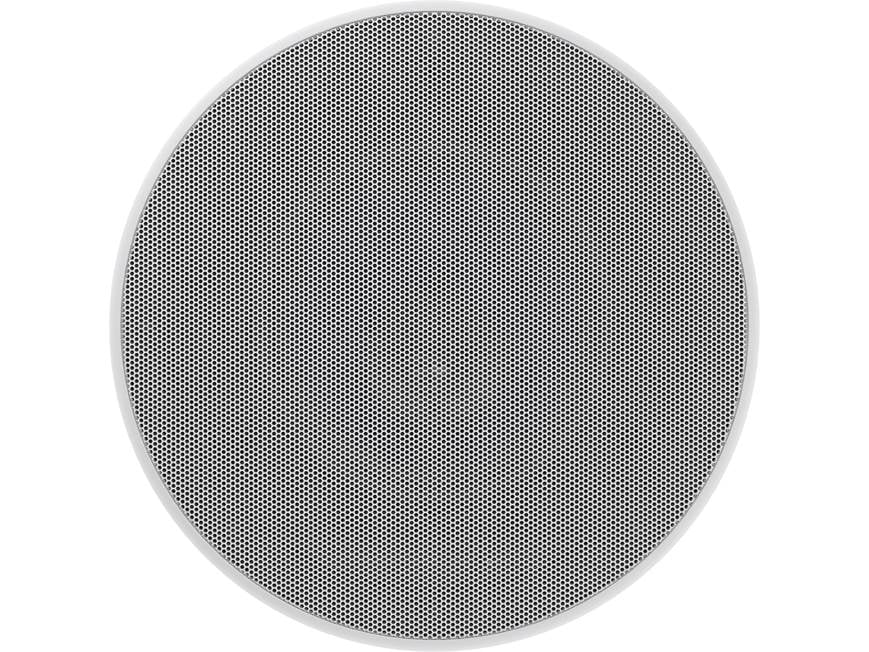

Magnetic & Paintable Grilles: The Bowers & Wilkins CCM665 in-ceiling loudspeaker includes easy-to-install magnetic grilles that are also paintable. The grille protrudes 0.25″ from the ceiling.

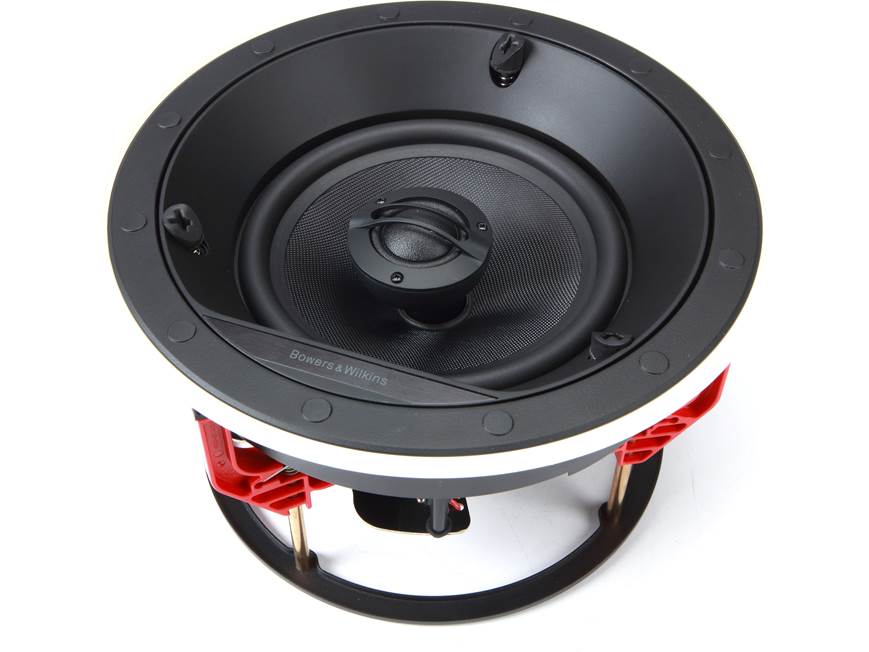

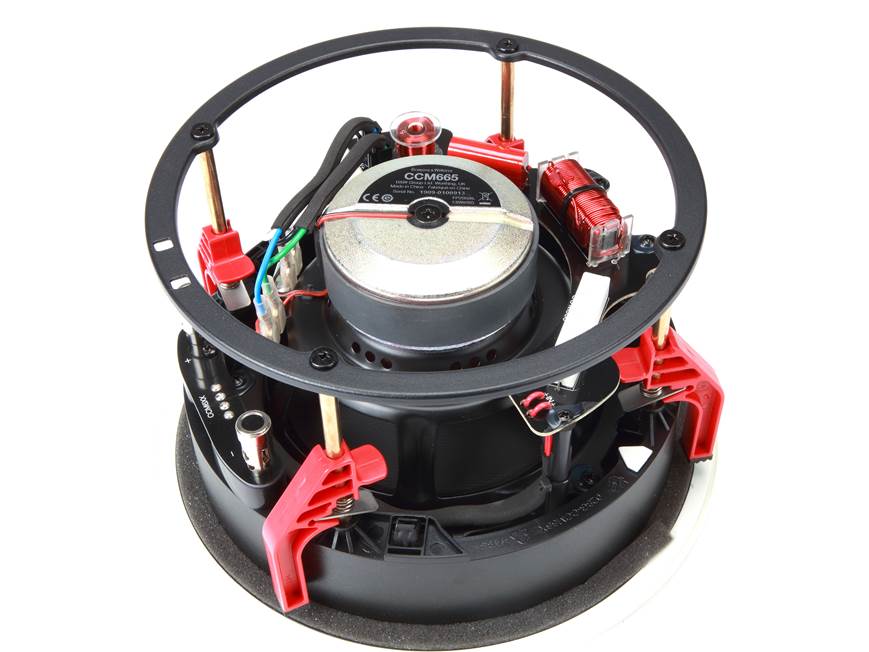

In-Ceiling Installation: The B&W CCM665 requires a round cutout and is secured in the ceiling via the included mounting frame with integrated “QuickDogs” spring-loaded clamps that tighten using phillips-head screws. The cutout will need to measure 8″ (diameter) x 5.25″ (depth). Make sure there is a least 0.75″ of clearance around the cutout opening for the integrated “QuickDogs” clamps. The mounting clamps will accommodate 0.25″ to 1″ thick drywall.

Applications: The Bowers & Wilkins CCM6 Series in-ceiling loudspeakers are suited for distributed audio, 2-channel stereo, and multi-channel home theater applications.

• Distributed Audio: For applications where single CCM6 Series speakers are required to operate independently to provide background audio, they can be mounted as installation convenience and architecture dictate. The only acoustic constraint to bear in mind is that corner locations will result in significantly emphasized low frequencies and should be avoided.
• 2-Channel Stereo: For applications where a pair of CCM6 Series speakers is to be used for conventional stereo reproduction, they should be located between 10′ and 16.5′ apart and a similar distance in front of the listening area.
• Home Theater: For applications where multiple CCM6 Series speakers are to be used for multi-channel home theater system, the left and right front speakers should be located either side of the screen approximately 20″ away. The center channel speaker should be located either directly above or below the screen or, in the case of an acoustically transparent screen, directly behind. Surround channel CCM6 Series speakers should be located just behind and either side of the listening position.

What’s in the box:

• Bowers & Wilkins Performance Series CCM665 owner’s manual If you need assistance accessing this owner’s manual, please give us a call.
• 2 In-ceiling loudspeakers
• 2 Mounting frames
• 2 Grilles
• 2 Paint masks
• 2 Cutout templates
• Quick Start Guide
• Warranty Information
