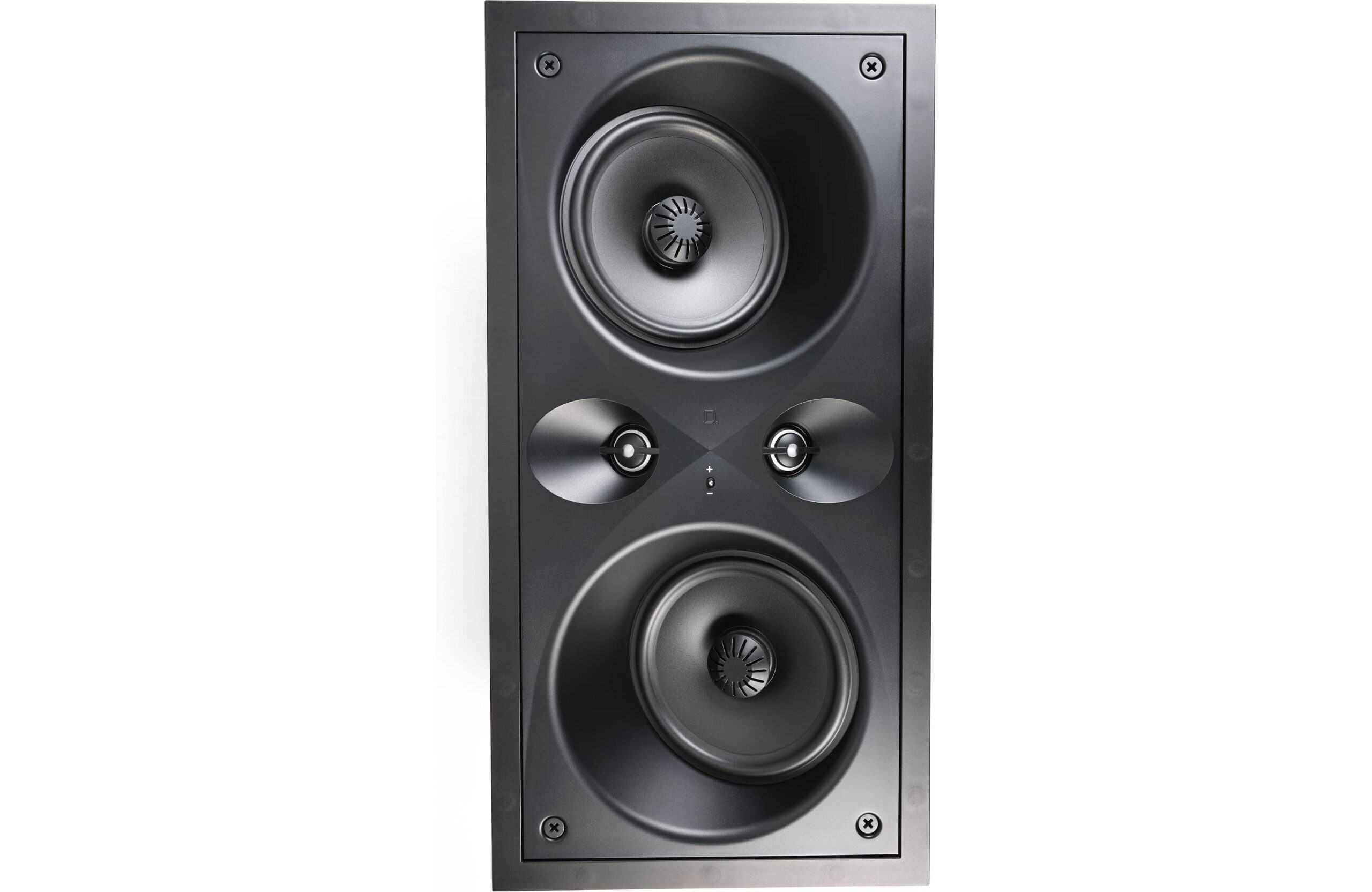

Definitive Technology DW-MAX SUR In-wall bi-polar surround speaker
- Ideal for a side or rear effects channel in a custom-installed home theater
- Specialized bi-polar design for immersive sound effects
- Dual 1″ aluminum oxide dome tweeters
- Dual 5-1/4″ mineral-filled poly woofers
- IP55-rated protection against dust and humidity
- Discreet design includes paintable, low-profile magnetic grille
- Handles up to 200 watts RMS
- Frequency response: 52-25,000 Hz (−3dB)
- Sensitivity: 89 dB
- Nominal impedance: 4 ohms
CALL FOR YOUR BEST PRICE
| Brand |
Definitive Technology |
|---|
75
People watching this product now!
Description
Unobtrusive, theater-like special effects
Are you in the planning stages of your custom-installed home theater? Consider the Definitive Technology DW-MAX SUR in-wall speaker for each of your side or rear surround channels. It uses a specialized “bi-polar” design to spread sound effects across a wide, spacious soundfield.
The DW-MAX SUR’s woofers and tweeters fire in different directions to create immersive, wraparound sound effects.
Dual driver arrays for immersive sound

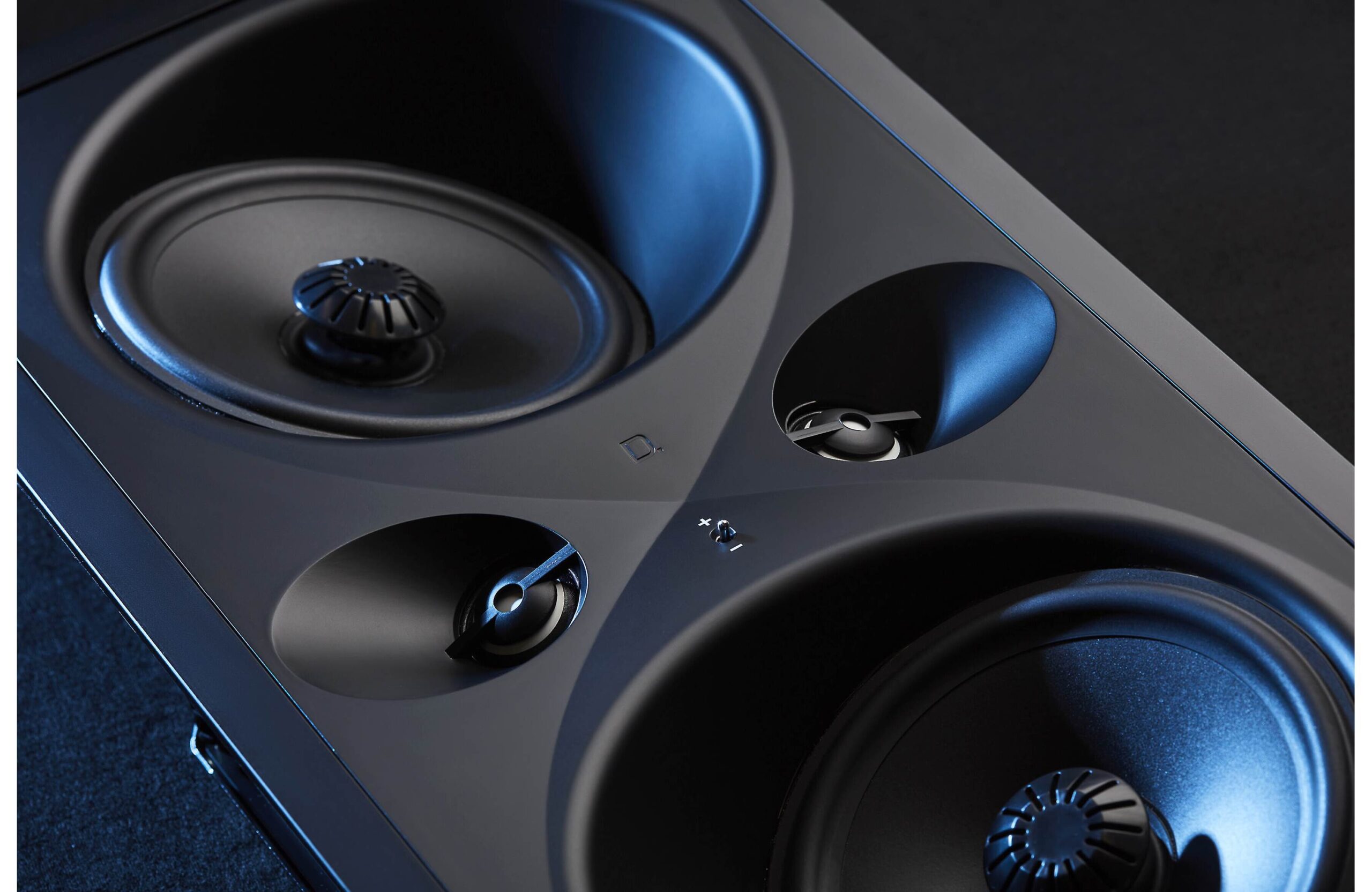

The DW-MAX SUR uses two 5-1/4″ mineral-filled poly woofers for tight bass and articulate midrange, and two 1″ aluminum oxide dome tweeters for clear, defined highs. The woofers and tweeters are mounted off-axis from each other — firing at different angles to generate dramatic, room-filling surround effects.
A three-position level switch lets you cut or boost the highs to best suit your room’s acoustics.

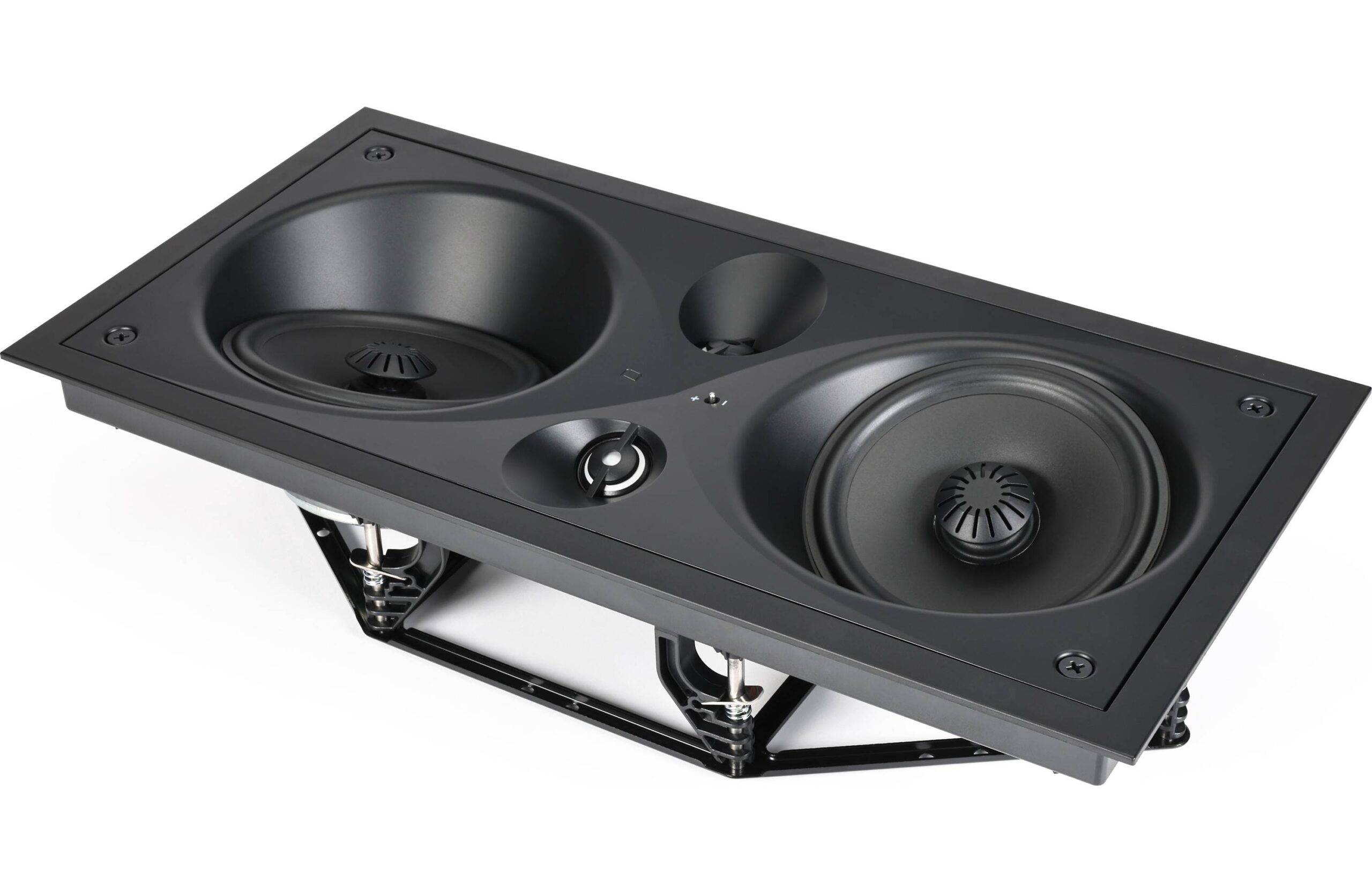

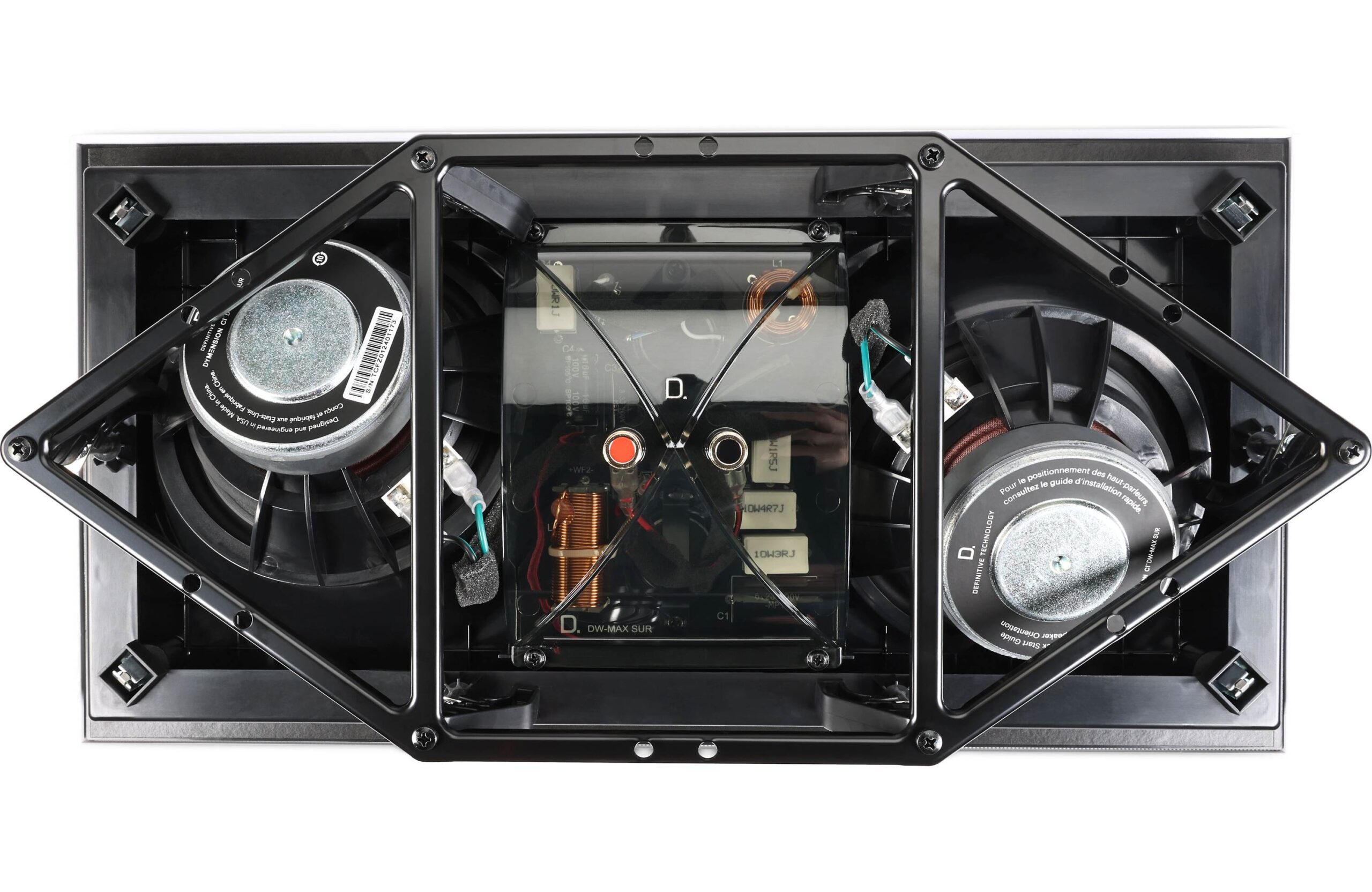

Tool-free mounting for a smooth installation

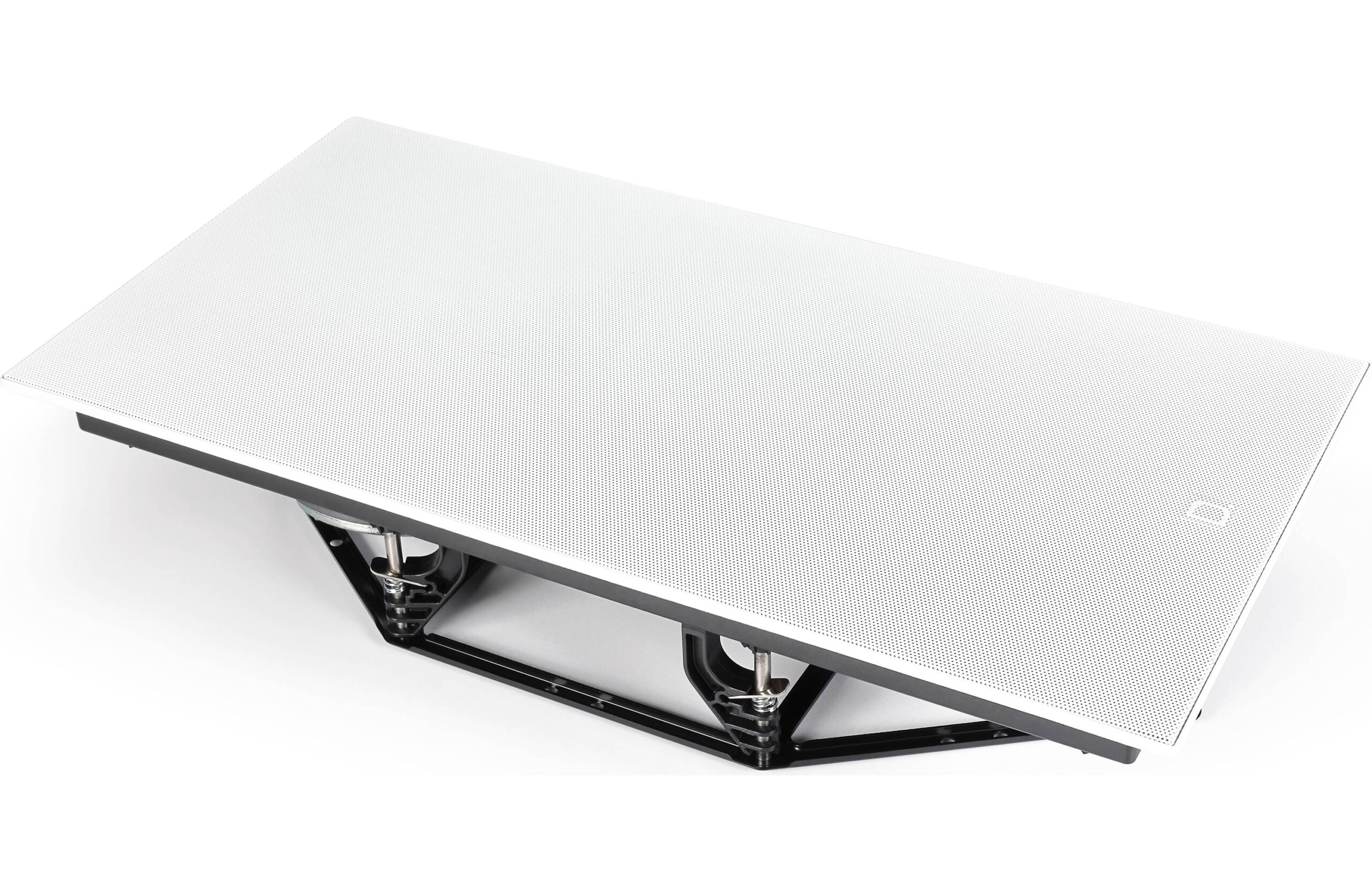

Def Tech designed a simple two-piece mounting system with pivoting “dog” arms that makes speaker installation simple. And the paintable, low-profile magnetic grille allows the DW-MAX SUR to virtually vanish within your room.
Check out our guide to installing in-wall speakers, along with our selection of in-wall speaker wire.
Product highlights:
- ideal for a side or rear effects channel in a custom-installed home theater
- specialized bi-polar design for immersive sound effects
- woofers and tweeters fire off-axis from each other to create an expanded soundfield
- dual 1″ aluminum oxide dome tweeters
- 3-position high-frequency level switch (-2 dB, flat, + 2 dB) adjusts the output to match your room’s acoustics
- dual 5-1/4″ mineral-filled poly woofers
- Linear Response Waveguideâ„¢ helps provide even, balanced sound throughout the listening area
- Balanced Double Surround System (BDSSâ„¢) enhances driver excursion and output for punchy bass and articulate midrange
- IP55-rated protection against dust and humidity
- discreet design includes paintable, low-profile magnetic grille
- handles up to 200 watts RMS
- frequency response: 52-25,000 Hz (−3dB)
- sensitivity: 89 dB
- nominal impedance: 4 ohms
Dimensions and warranty:
- cutout dimensions: 8-5/16″W x 17-7/16″H
- overall dimensions: 9-9/16″W x 18-11/16″H
- mounting depth: 3-11/16″
- warranty: 5 years
