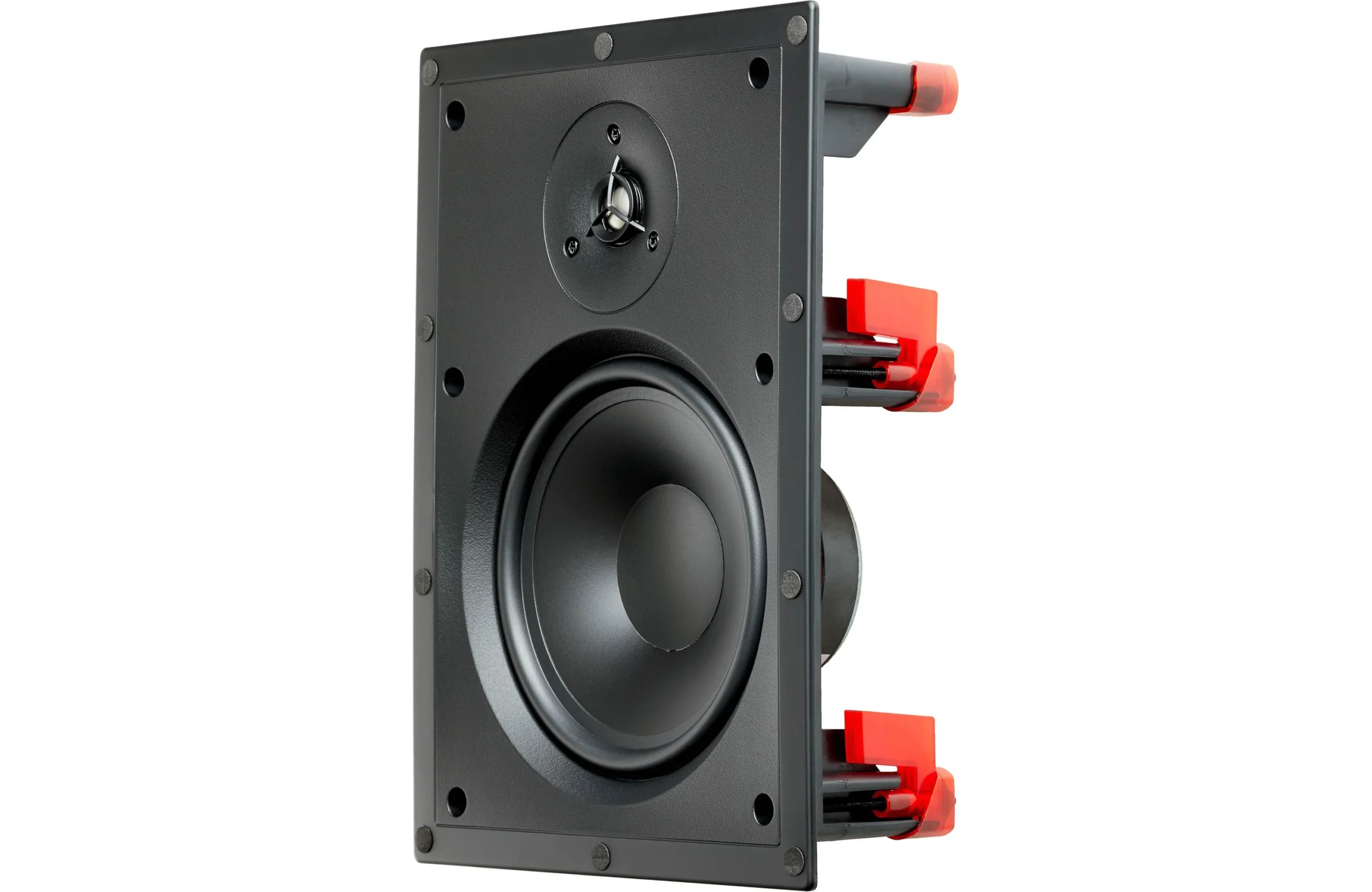

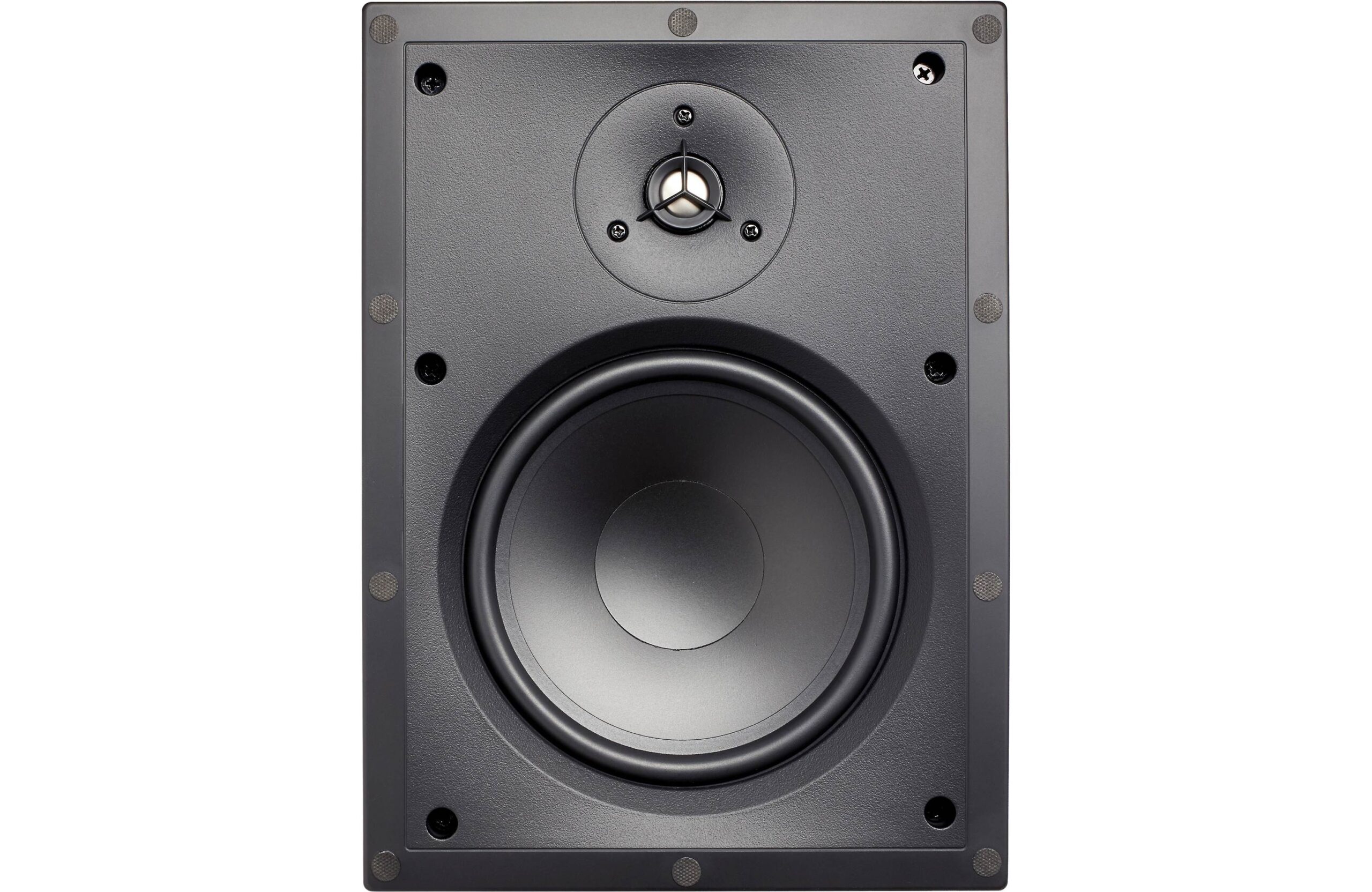

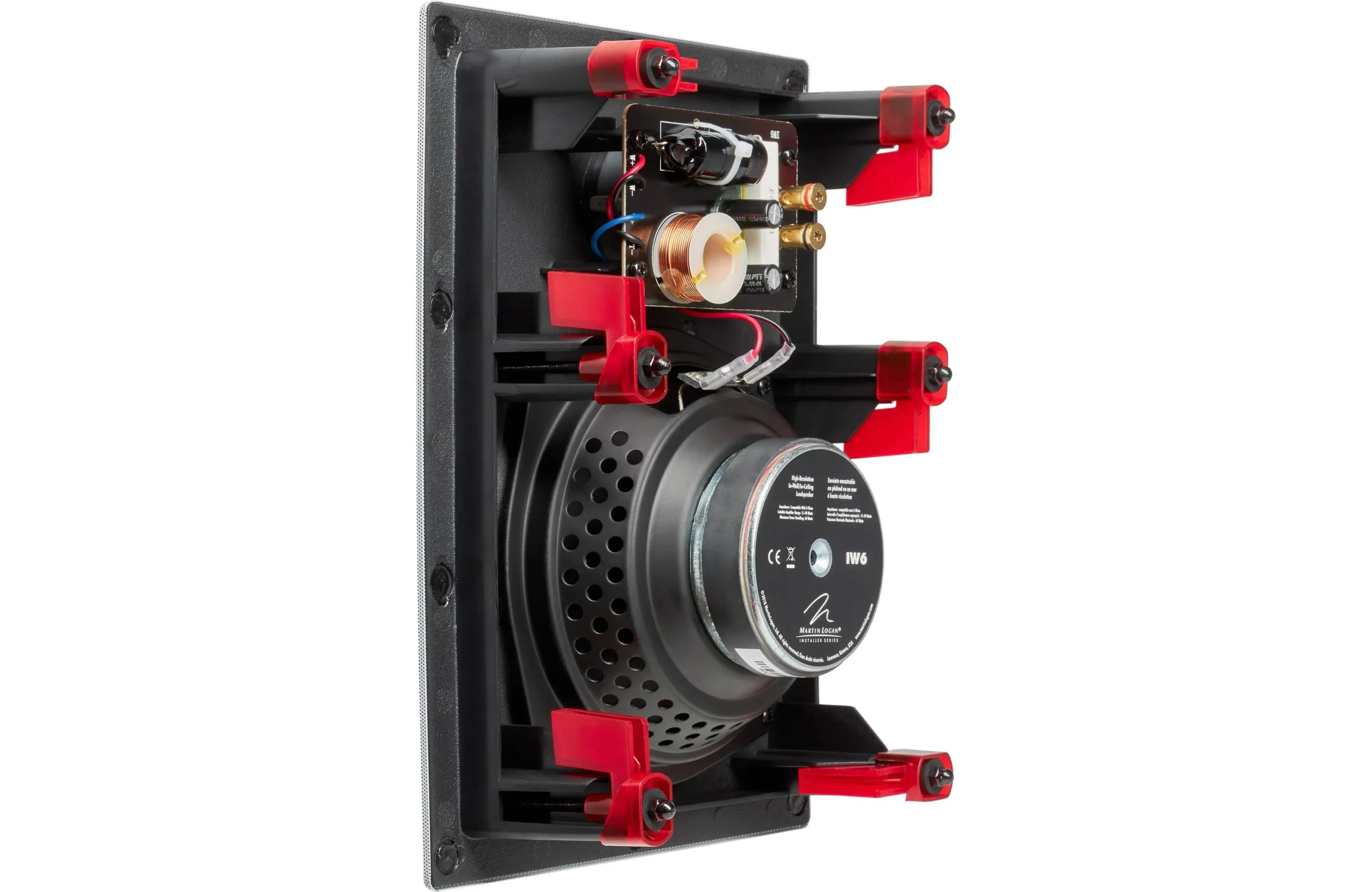

MartinLogan Installer Series IW6

Product Info:

• • ideal for an in-wall music system or as a left or right channel in a home theater system

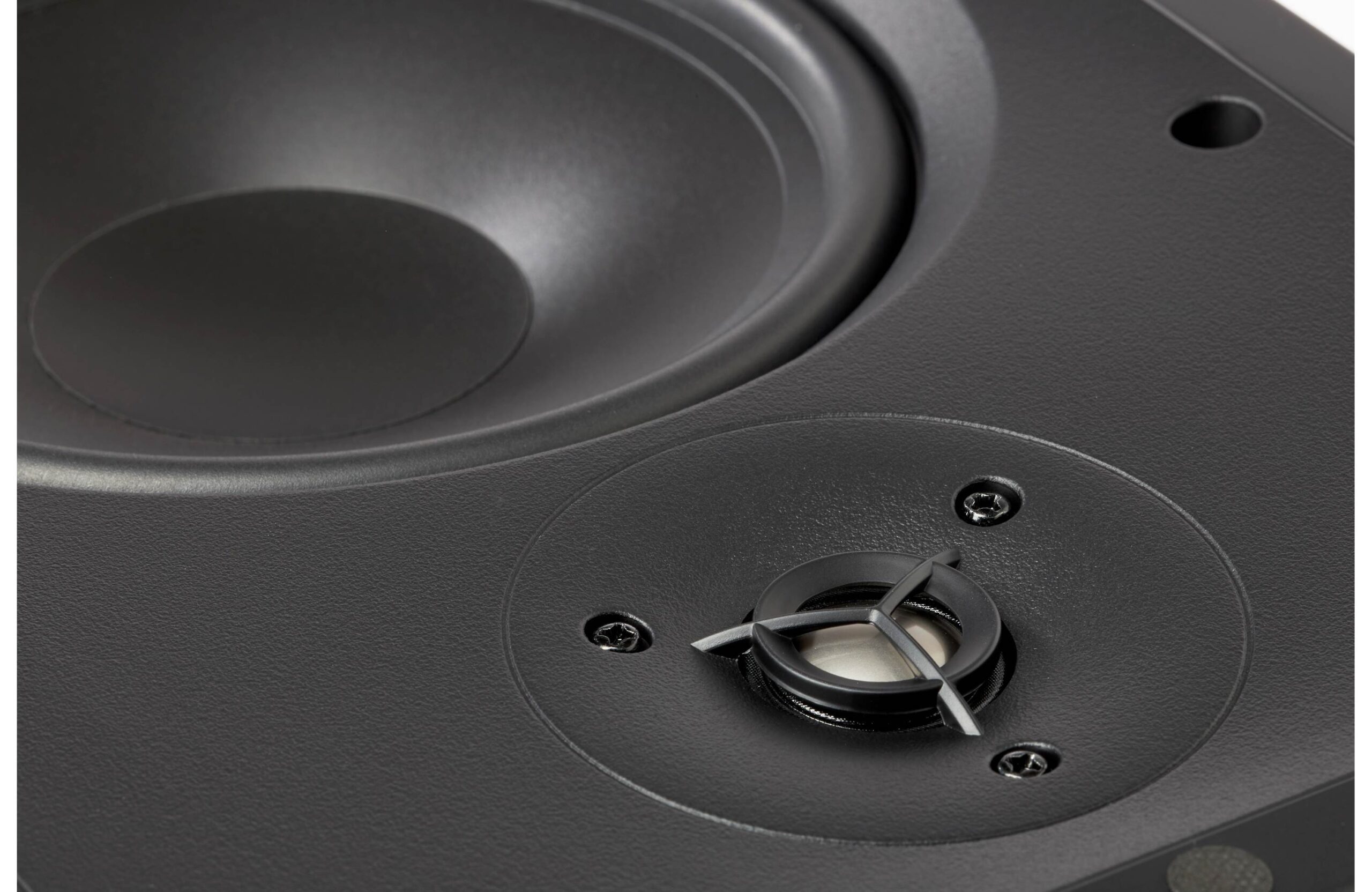

  • 3/4″ titanium dome tweeter
  • 6-1/2″ mineral-filled polypropylene woofer
  • frequency response: 55-20,000 Hz (±3 dB)
  • recommended amplifier power: 15-60 watts
  • sensitivity: 89 dB
  • impedance: 8 ohms

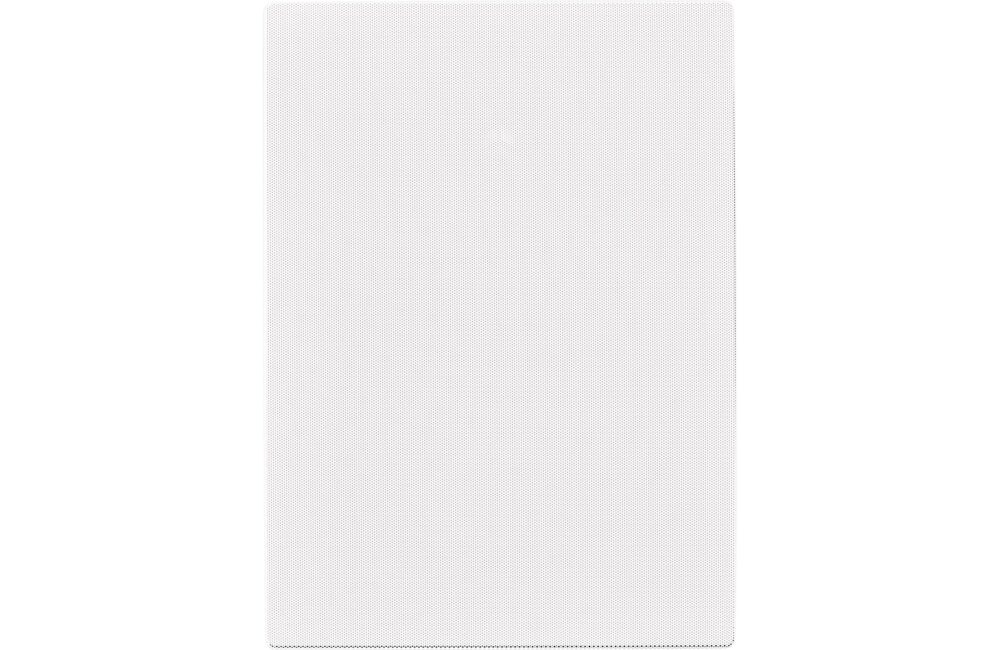

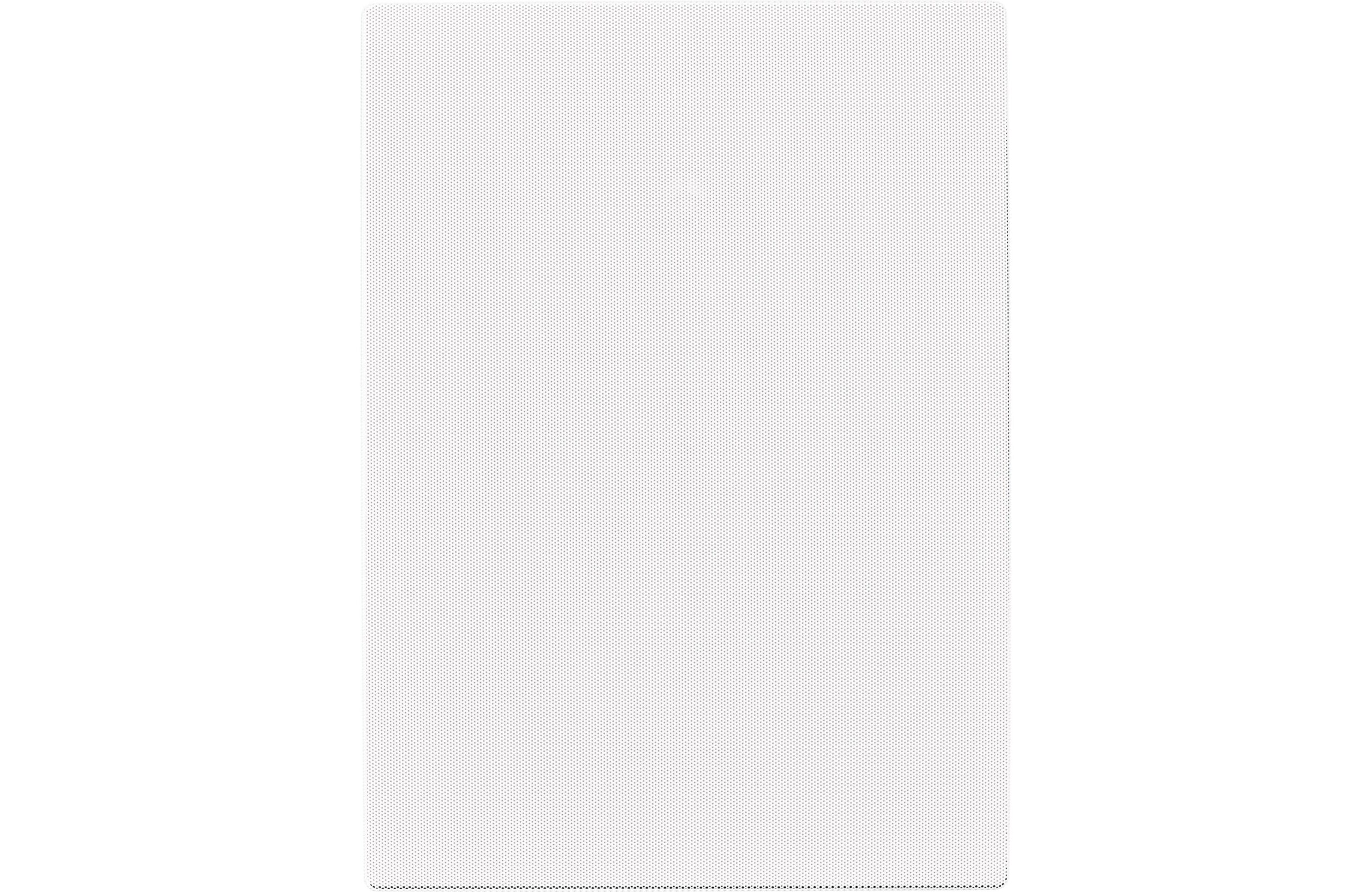

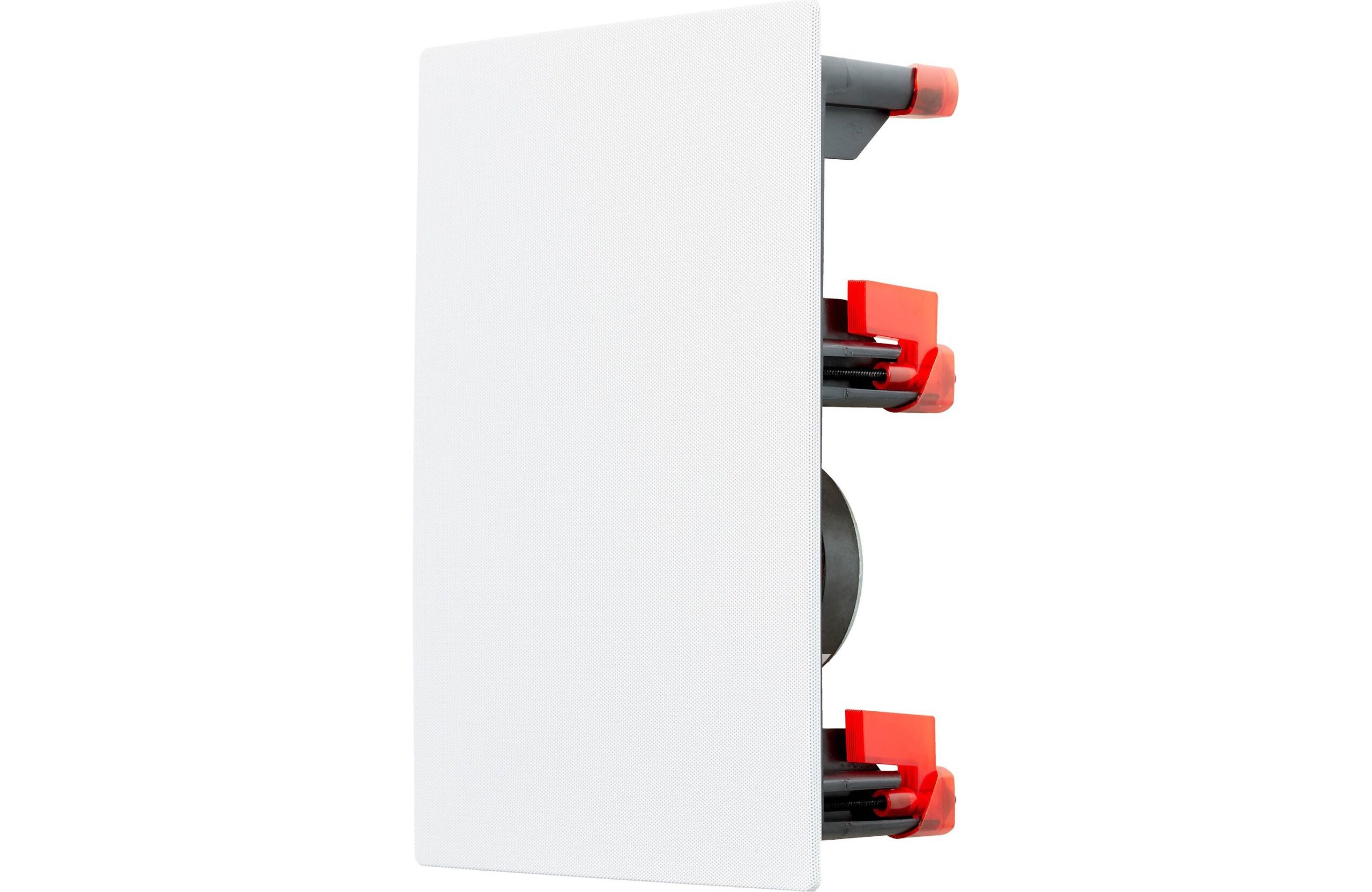

  • ultra-thin bezel and paintable magnetic grille provide seamless integration into your décor
  • cutout dimensions: 7-1/16″W x 10-1/8″H
  • overall dimensions: 8-3/16″W x 11-3/16″H
  • mounting depth: 3-3/16″
  • weight: 3.5 lbs.
  • warranty: 5 years
  • MFR # IW6



  • Specs

  • Features
    Quantity in Package	Single
    Tweeter	Hard-Dome
    Aimable Tweeter	No
    Woofer Composition	Mineral-filled poly
    Woofer Surround	Rubber

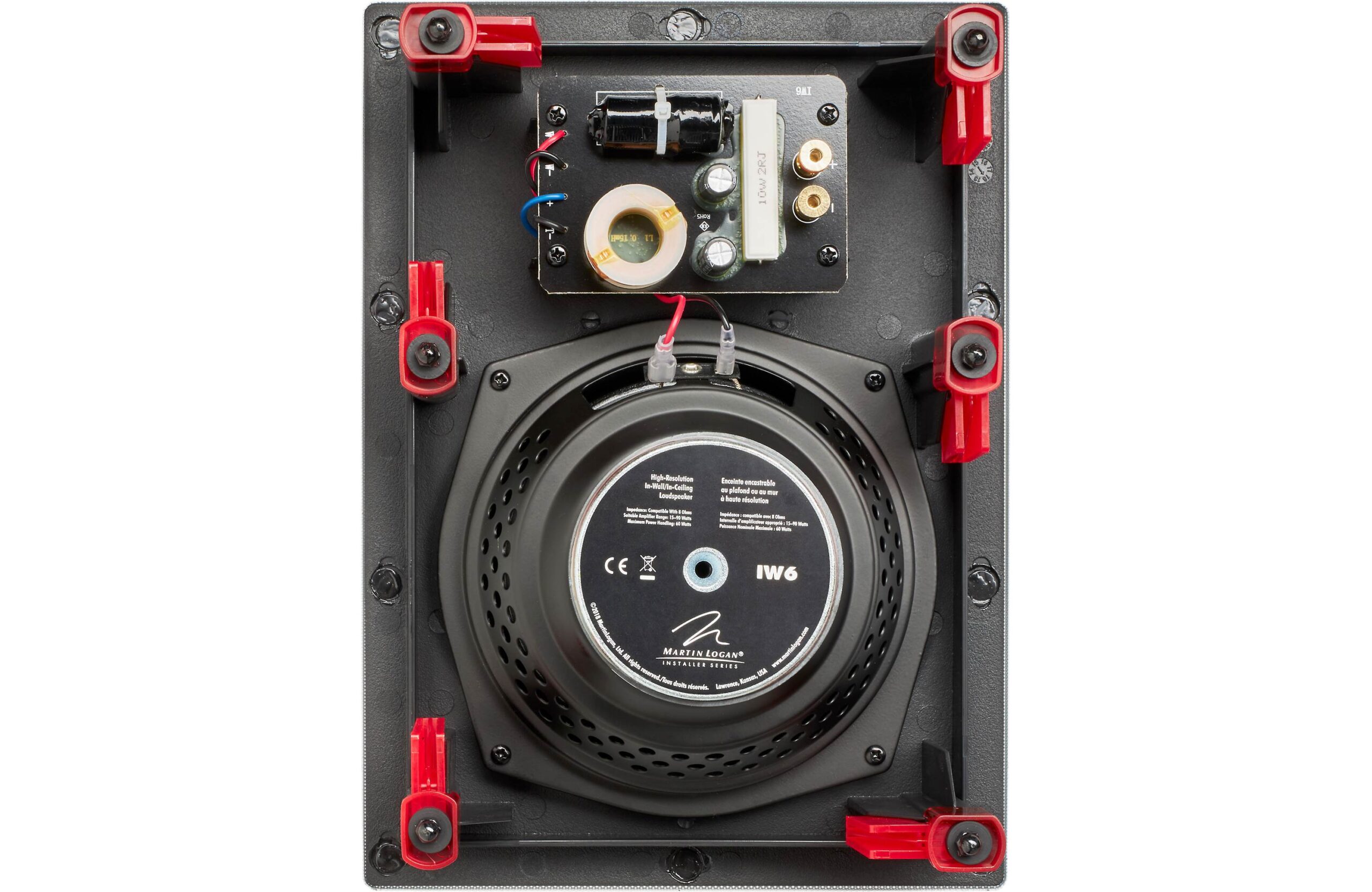

    Connector Type	Spring post
    Bi-Amp Inputs	No
    Built-in Back-box	No

    Moisture Resistance
    Indoor (Moisture-resistant)	No
    Outdoor (Partial Exposure)	No
    Outdoor (Full Exposure)	No

    Specs
    Tweeter Size	0.75
    Midrange Size	N/A
    Woofer Size	6.5
    Speaker Shape	Rectangle
    Cutout Width	7.0625
    Cutout Height	10.125
    Mounting Depth	3.1875
    Power Range (Watts)	15-60
    Sensitivity	89 dB
    Impedance (Ohms)	8
    Frequency Response	55-20kHz
    Parts Warranty	5 Years
    Labor Warranty	5 Years
