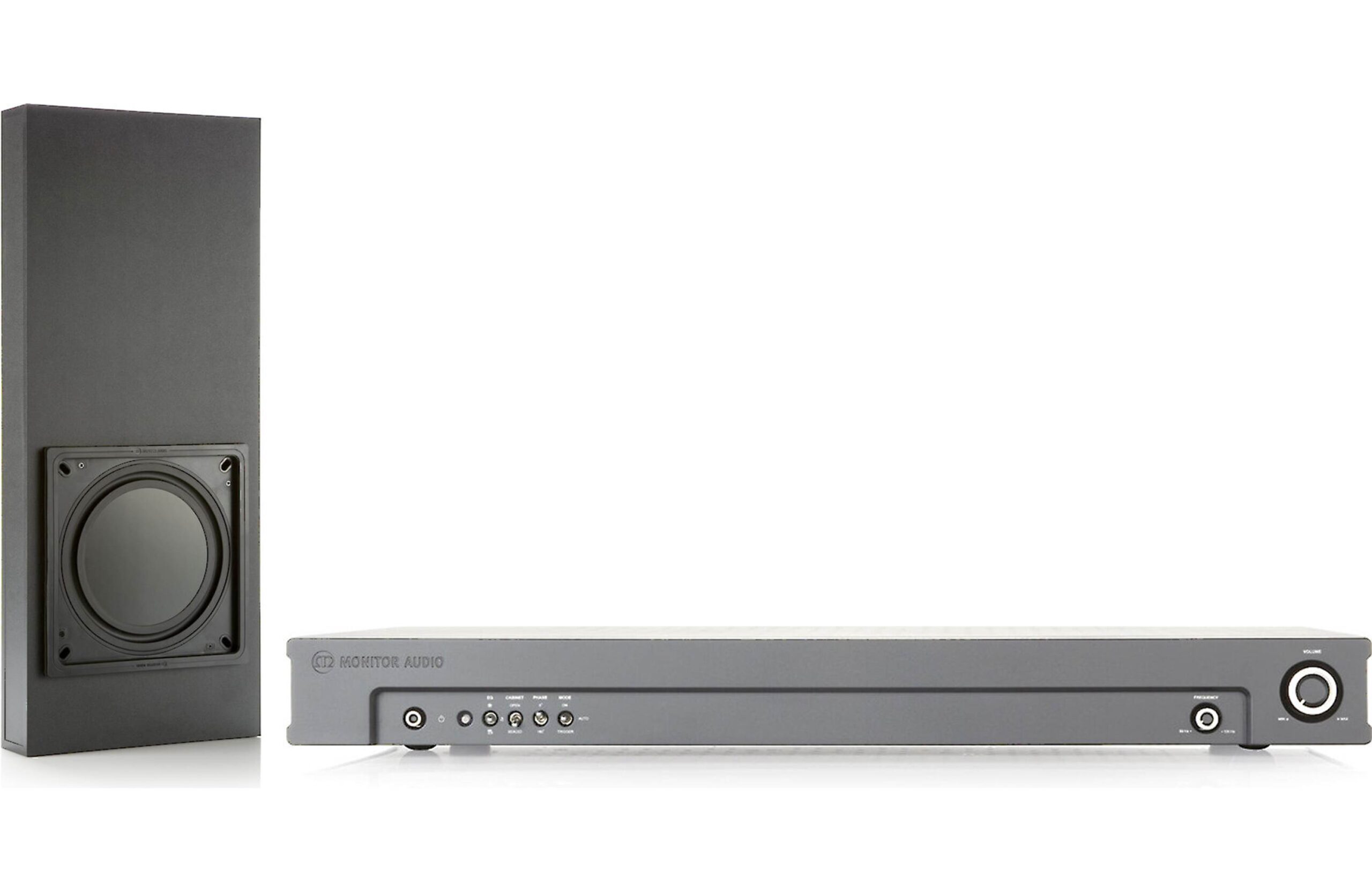

Monitor Audio IWS10, IWB-10, and WA250 In-Wall Subwoofer System

Product highlights:

• in-wall subwoofer system with matching external amplifier
• ideal for a discreet home theater or stereo music system

Monitor Audio IWS-10 subwoofer:

• 10″ RDT® (Rigid Diaphragm Technology) flat-panel woofer with die-cast chassis and basket
• frequency response: 28-120 Hz
• impedance: 8 ohms
• sensitivity: 86 dB
• cutout dimensions: 11″W x 11″H
• overall dimensions: 12-1/2″W x 12-1/2″H x 3-13/16″D
• paintable bezel and grille
• warranty: lifetime

Monitor Audio IWB-10 in-wall enclosure:

• heavy duty MDF construction with laminated vinyl finish
• fits into standard 14″ stud bays (16″ on-center)
• includes adjustable steel brackets for installation
• 13-13/16″W x 33-1/2″H x 3-3/8″D
• warranty: 60 days

Monitor Audio IWA-250 power amplifier:

• Class D design
• delivers up to 250 watts into 4 ohms
• built-in digital signal processing (DSP)
• powers on automatically via 12-volt trigger or input signal
• variable low-pass crossover control: 40-120Hz (for use with stereo amplifiers)
• stereo RCA, unbalanced LFE (RCA), and balanced LFE (XLR) inputs
• dual mono binding post speaker outputs for connecting up to two subwoofers
• front-panel phase switch, volume control, and EQ profile switch (music, movie, impact)
• includes brackets for rack-mounting (1U)
• 17″W x 1-15/16″H x 11-5/8″D
• weight: 8.75 lbs.
• warranty: 5 years
