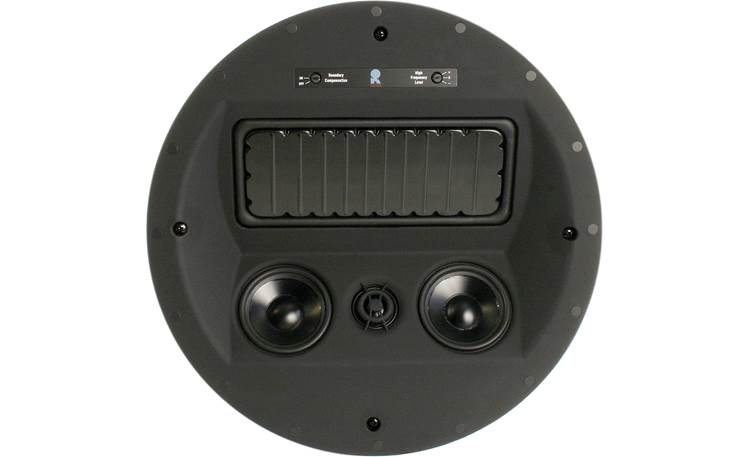

Revel C763L

Product highlights:

• three-way speaker with angled-baffle design to direct sound towards your listening position
• ideal for the front left, right, and center channel locations of an in-ceiling home theater system
• 7-13/16″ x 3-7/16″ flat-panel micro-ceramic composite (MCC) woofer
  • boundary compensation switch adjusts low-frequency output when the speaker is placed near a wall
• two 3-1/2″ micro-ceramic composite (MCC) midrange drivers with cast-aluminum frames
• 1″ aluminum dome tweeter
  • three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room’s acoustics
  • integrated waveguide provides excellent on- and off-axis performance
• high-order crossover network delivers accurate timbre reproduction
• recommended amplifier power: 10-200 watts
• includes both round and square zero-bezel magnetic grilles
  • grilles are paintable to match your décor
• sensitivity: 85 dB
• nominal impedance: 6 ohms
• speaker cutout diameter: 11-1/4″
• overall diameter: 12-7/16″
• mounting depth: 5-3/4″
• square grille dimensions: 12-1/2″W x 12-1/2″H
• weight: 4 lbs.
• warranty: lifetime
• 60-day returns
• MFR # C763L
• Item # 265C763L
