Revel W126Be In-wall speaker

Product highlights:

• ideal for a high-performance in-wall music system or home theater system
• 1″ beryllium dome tweeter
  • dual neodymium magnets for extremely accurate high-frequency reproduction
  • acoustic lens waveguide ensures seamless sound with woofer
• 6-1/2″ Deep Ceramic Composite (DCC) woofer
  • coarse ceramic coating on either side of aluminum cone for excellent damping and reduced distortion
  • optimized motor magnetics for improved mid- and low-frequency performance
• high-order crossover network delivers accurate timbre reproduction
• frequency response: 55-40,000 Hz (-6 dB)
• recommended amplifier power: 50-150 watts at 4 ohms
  • high-performance am

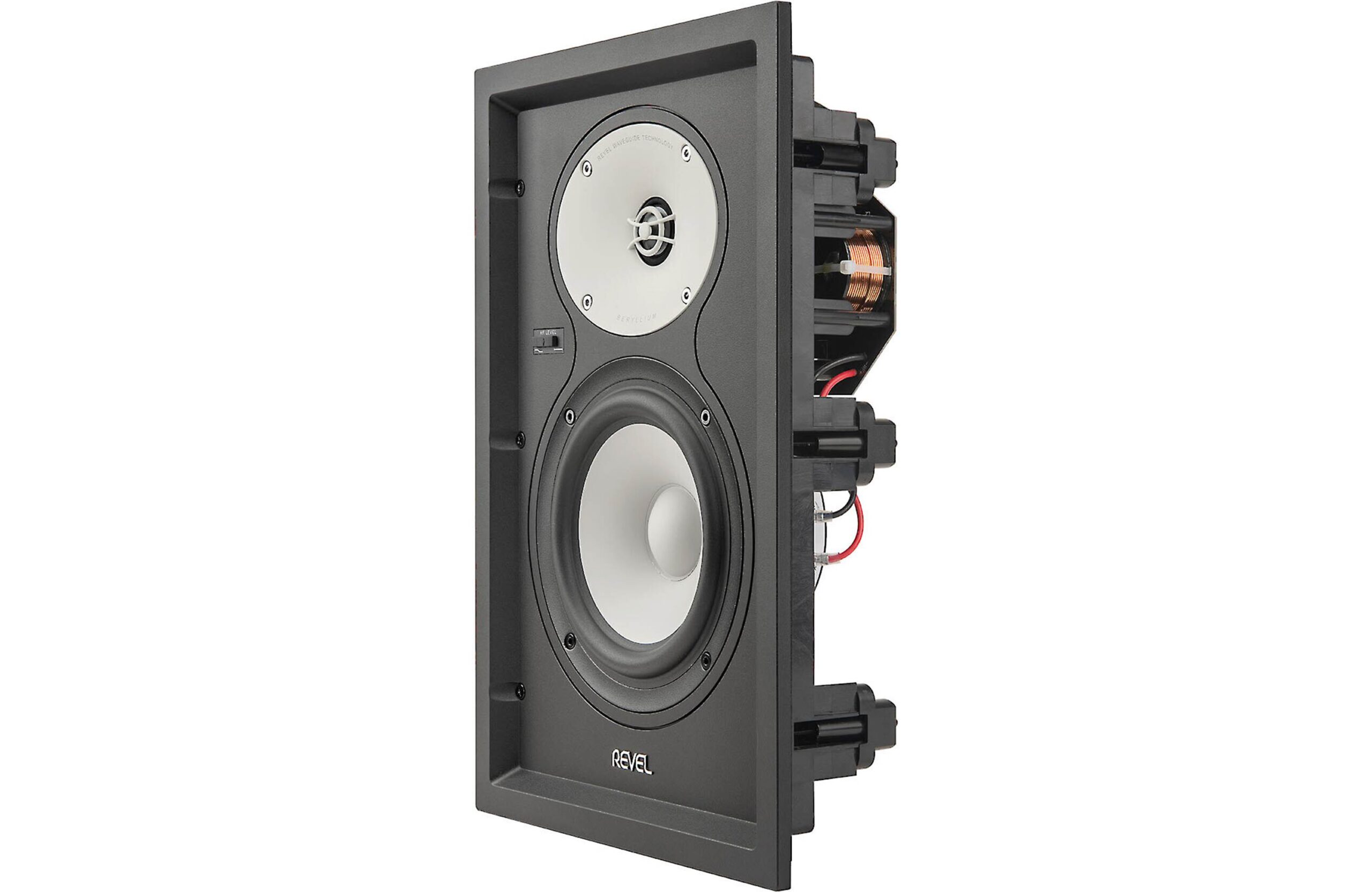

    A beryllium-tweeter in-wall speaker from Revel

    This high-quality in-wall speaker from Revel is ideal for an audiophile-grade music system, or as a front, side, or rear surround speaker in a high-end home theater setup. You’ll hear super-clear high-frequency detail from its 1” beryllium tweeter. Beryllium is known for being both ultra-light and very rigid — properties that allow the tweeter to deliver exquisitely smooth detail without distortion. Dual neodymium magnets control the tweeter’s movement with precision, and an acoustic lens waveguide provides a cohesive soundstage throughout your room.

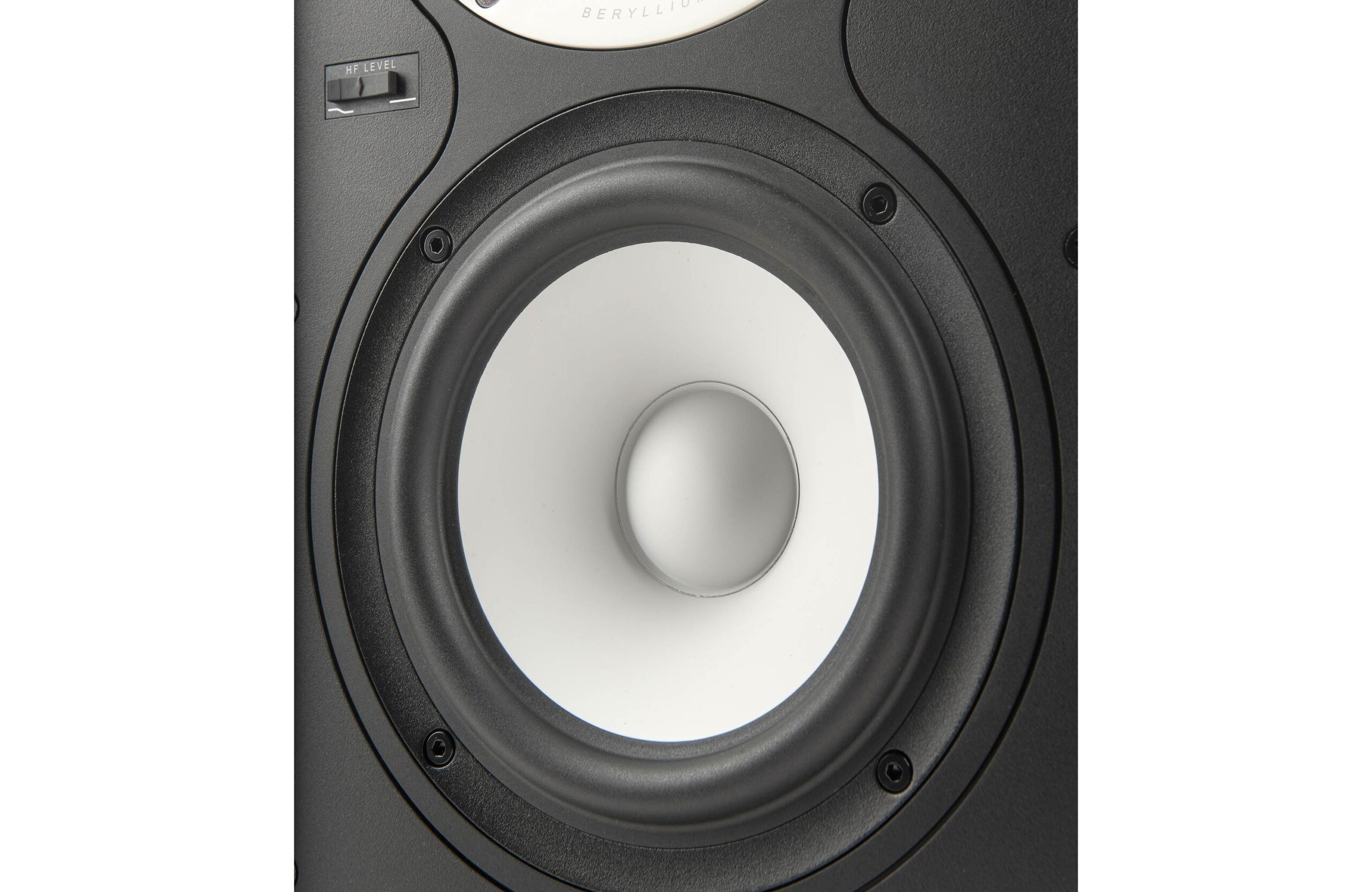

    The 6-1/2″ Deep Ceramic Composite (DCC) woofer features an aluminum cone sandwiched between two layers of ceramic coating. This design provides excellent damping for tight bass response. You can also use the C126BeBB backbox (sold separately) to ensure optimum sound and help keep it from bleeding into adjacent rooms.

    Part of your Revel PerformaBe home theater system

    The W126Be shares the same acoustic signature sound as Revel’s popular PerformaBe line. That means you can get great results when you pair this speaker with bookshelf, floor-standing, and center channel models in your home theater setup.

    READ LESS

    Product highlights:

    • ideal for a high-performance in-wall music system or home theater system
    • 1″ beryllium dome tweeter
      • dual neodymium magnets for extremely accurate high-frequency reproduction
      • acoustic lens waveguide ensures seamless sound with woofer
    • 6-1/2″ Deep Ceramic Composite (DCC) woofer
      • coarse ceramic coating on either side of aluminum cone for excellent damping and reduced distortion
      • optimized motor magnetics for improved mid- and low-frequency performance
    • high-order crossover network delivers accurate timbre reproduction
    • frequency response: 55-40,000 Hz (-6 dB)
    • recommended amplifier power: 50-150 watts at 4 ohms
      • high-performance amplifier recommended
    • nominal impedance: 6 ohms; minimum impedance: 4 ohms
    • maximum SPL: 105 dB
    • sensitivity: 89 dB

    Other info:

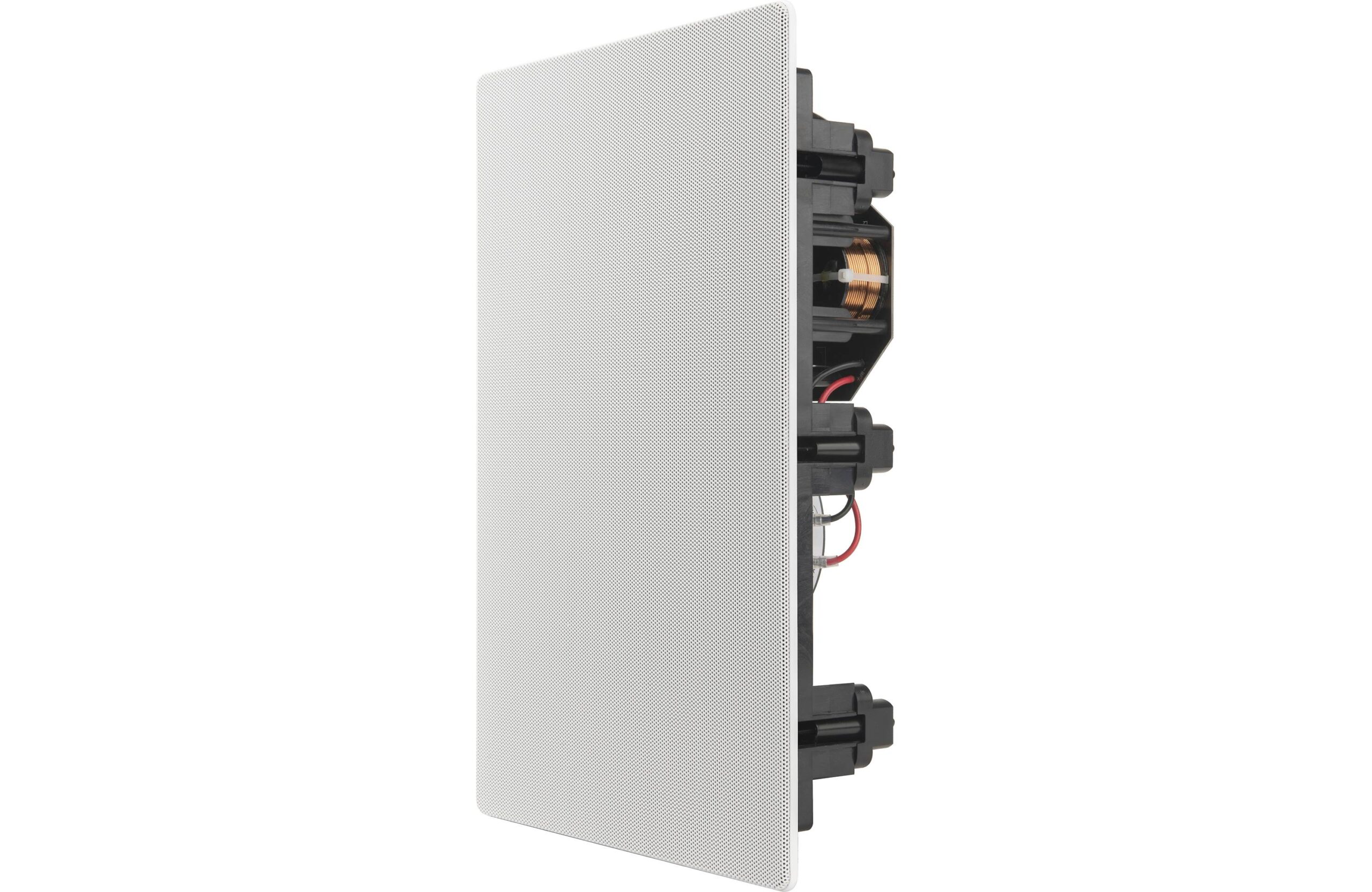

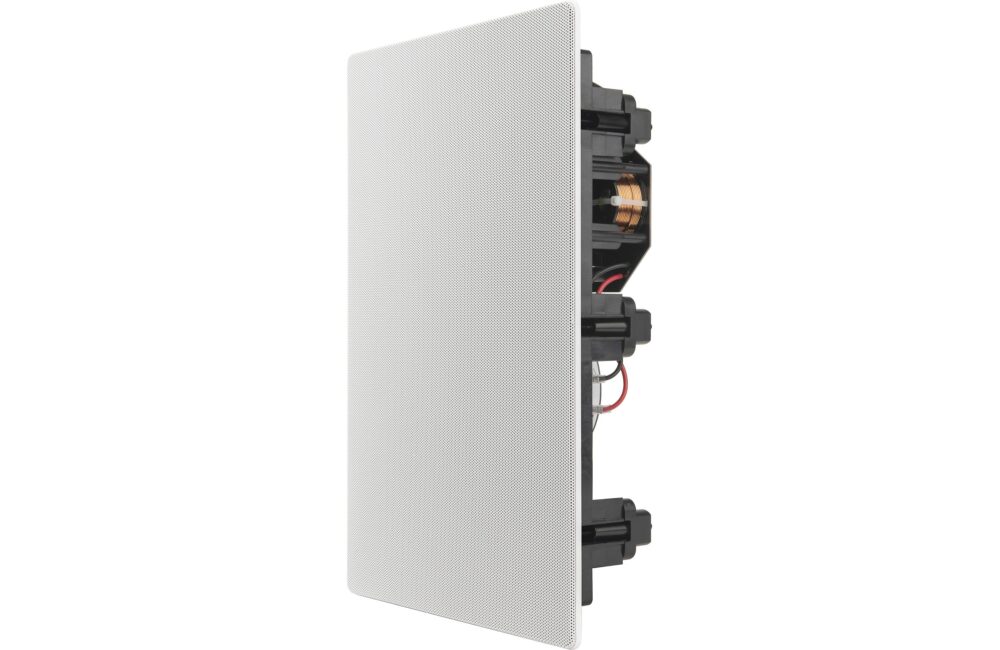

    • zero-bezel magnetic grille is paintable to match your decor
    • cat’s claw mounting system for wallboard or optional W126BeBB backbox installations
    • compatible wall-thickness range: 7/16″-1″
    • speaker cutout: 14-1/8″ x 8-15/16″
    • mounting depth: 3-1/2″
    • dimensions with grille: 10-1/4″W x 15-5/8″H x 3-13/16″D
    • weight: 10.4 lbs. (with grille)
    • warranty: lifetime

    plifier recommended

• nominal impedance: 6 ohms; minimum impedance: 4 ohms
• maximum SPL: 105 dB
• sensitivity: 89 dB

Other info:

• zero-bezel magnetic grille is paintable to match your decor
• cat’s claw mounting system for wallboard or optional W126BeBB backbox installations
• compatible wall-thickness range: 7/16″-1″
• speaker cutout: 14-1/8″ x 8-15/16″
• mounting depth: 3-1/2″
• dimensions with grille: 10-1/4″W x 15-5/8″H x 3-13/16″D
• weight: 10.4 lbs. (with grille)
• warranty: lifetime
